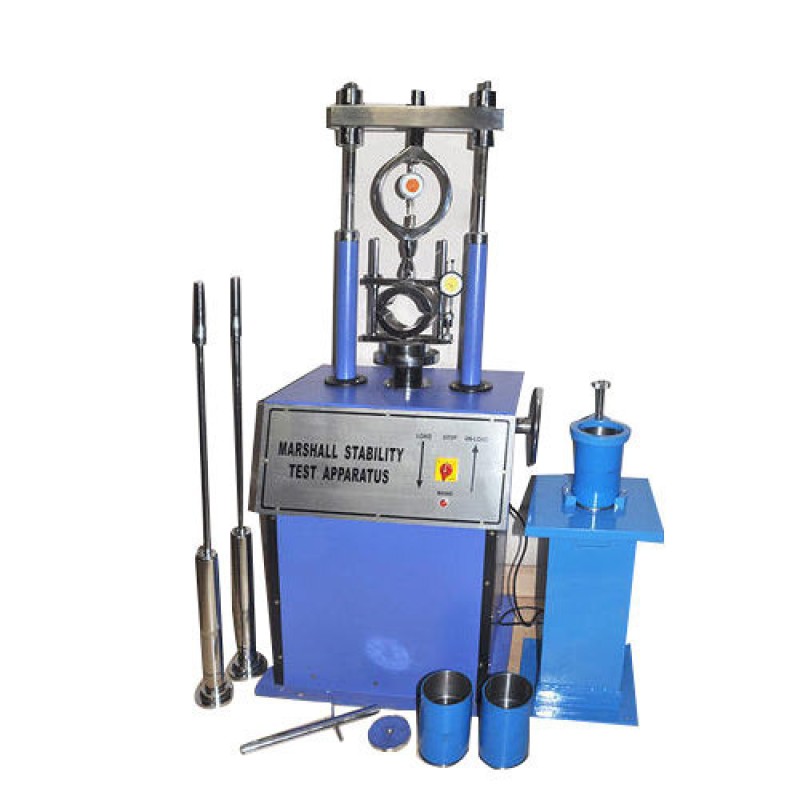

Marshall Stability and Compaction Apparatus

Product Details:

Size	Up to 25 mm
capacity	2500 kg
Rate of travel	50.8mm/min
Voltage	230V
Flow Meter	0.01 mm x 25 mm
Temperature	60 deg.C

Originally developed by Marshall Stability and Compaction Apparatus, a highway engineer in U.S.A later on standardized by ASTM. Generally, the test is applicable to hot mix designs using bitumen and aggregates upto a maximum size of 25 mm. In this method, the resistance to plastic deformation of a cylindrical specimen of a bituminous mixture is measured when the same is loaded periphery at 5 cm per min. This test procedure is used in designing and evaluating bituminous paving mixes. The test procedure is extensively used in routine test programmes for paving jobs There are two major features of the Marshall method of designing mixes namely. The Marshall stability of mix is defined as a maximum load carried by a compacted specimen at a standard test temperature of 60 deg.C. The flow value is deformation the Marshall test specimen undergoes during the loading upto the maximum load, in 0.25 mm units. In this test, an attempt is made to determine optimum binder content for the type of aggregate mix and traffic intensity. The apparatus consists of 1. A loading unit motorized, capacity 5000 kgf with two telescopic pillars and an adjustable crosshead Limit switches are fitted inside to control upward or downward movement of the pillars. On  off reversing switch and indicator lamps are on the front side while a hand wheel to manually move the pillars minute operated on 230 Volts A.C.

Features:
·         Density voids analysis
·         Stability flow tests.

Other Details:

·         No. Compaction pedestal with specimen mold holder
·         Nos. Compaction Rammers, 4.5 kg weight, and free fall 45.7 cm.
·         No. Breaking head assembly with provision to fix flow meter
·         No. Specimen mold 10.16 cm I.D. x 7.6 cm high with base plate and extension collar
·         No. Kit for specimen extraction consists of one each load transfer bar, steel ball, specimen exacting plate.
·         The flow meter (dial gauge) graduated 0.01 mm x 25 mm travel
·         Fitted with a stem brake unit to indicate maximum deflection Complete as above.

Accessories:
·         High sensitivity proving Ring 2500 kg capacity fitted with 0.002 mm dial gauge and our own test certificate. Complete in a nice wooden carrying case.
