Ductility Testing Machine
Product Details:

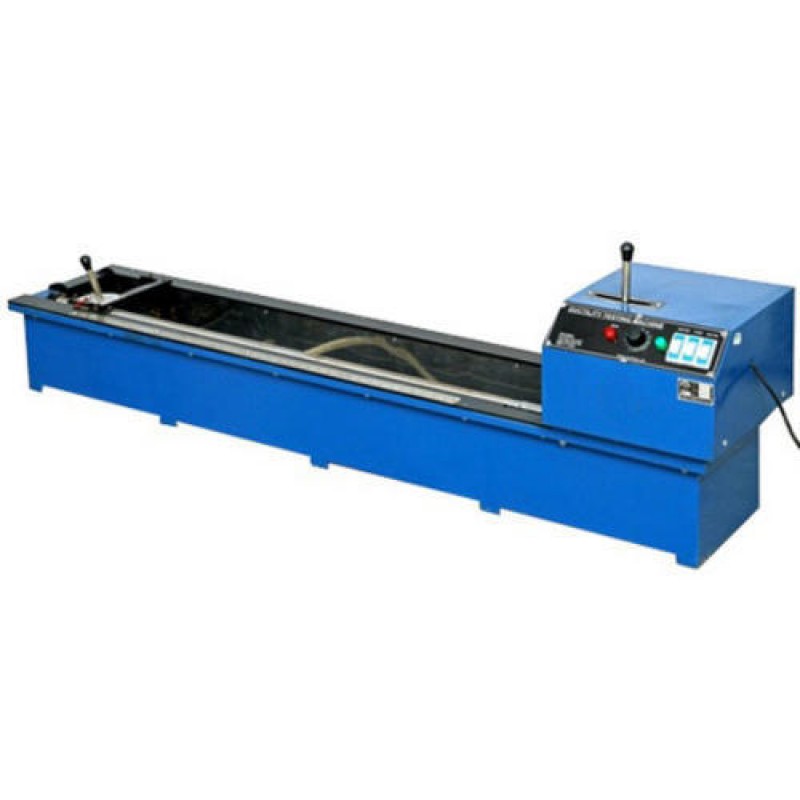

Ductility Testing Machine Electrically Operated for determining the ductility of asphalt and bitumen. The ductility of bitumen is expressed as the distance in centimeters to which a standard briquette can be elongated before the thread thus formed breaks under specified conditions. The Machine is designed to test three specimens simultaneously, and consists of a bath thermostatically controlled with inlet and outlet taps and is equipped with an electric pump circulator & heater and carriage moving over a lead screw. Fixed and movable brackets are so positioned that specimen is submerged in water throughout. A clutch arrangement is made to stop the movement of the movable bracket when the rapture of the specimen is noticed. An electric motor is driven reduction gear unit ensures smooth constant speed and continuous operation and provides two rates of pull/travel, i.e., 50mm/min and 10 mm/min in the machine.
Specification :

• The Machine is fitted with ½ HP motor
• Suitable for Operation on 220 V, Single Phase

• Frequency: 50 Hz, AC Supply
• Speed: 10-50 mm/min
