Bitumen Hand Operated

Product Details :

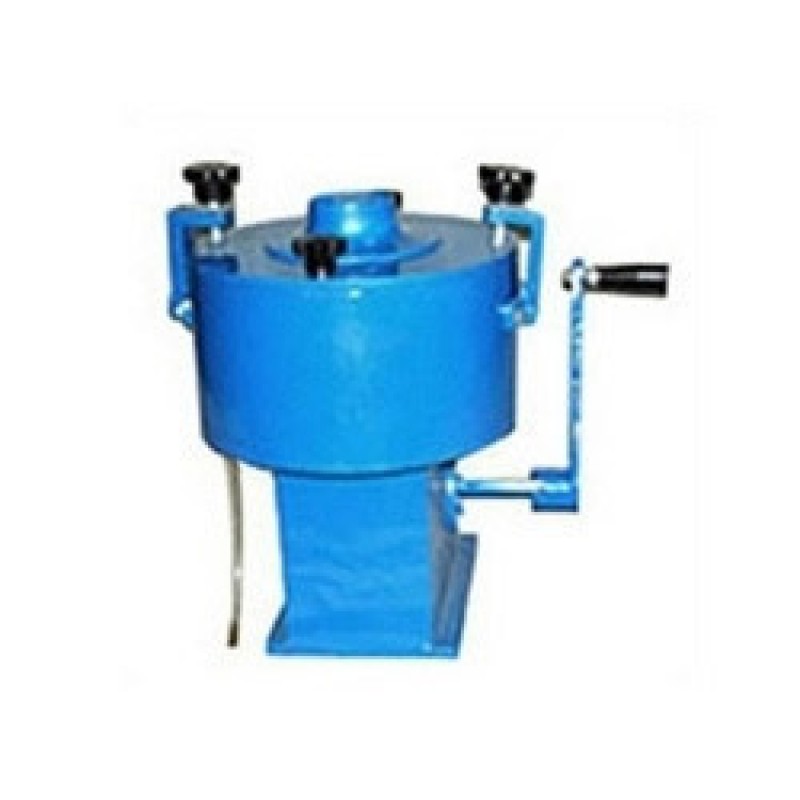

Bitumen This instrument is used for determination and checking of bitumen percentage in bituminous mix. The mix is added with a solvent and dissolved bitumen is removed by centrifugal action. Consists of a removable aluminium rotor bowl, capacity 1500 gms. This shaft and thus the bowl is rotated fast manually by enclosed gears in the cast body and handle. Solvent is introduced during the test through the holes in the cap of the housing. A drain is provided to collect dissolved bitumen coming out of the rotating bowl and getting collected in the housing.

Accessories: 1. Filter paper disc (packet of 100 Nos.) 2. Benzene.
