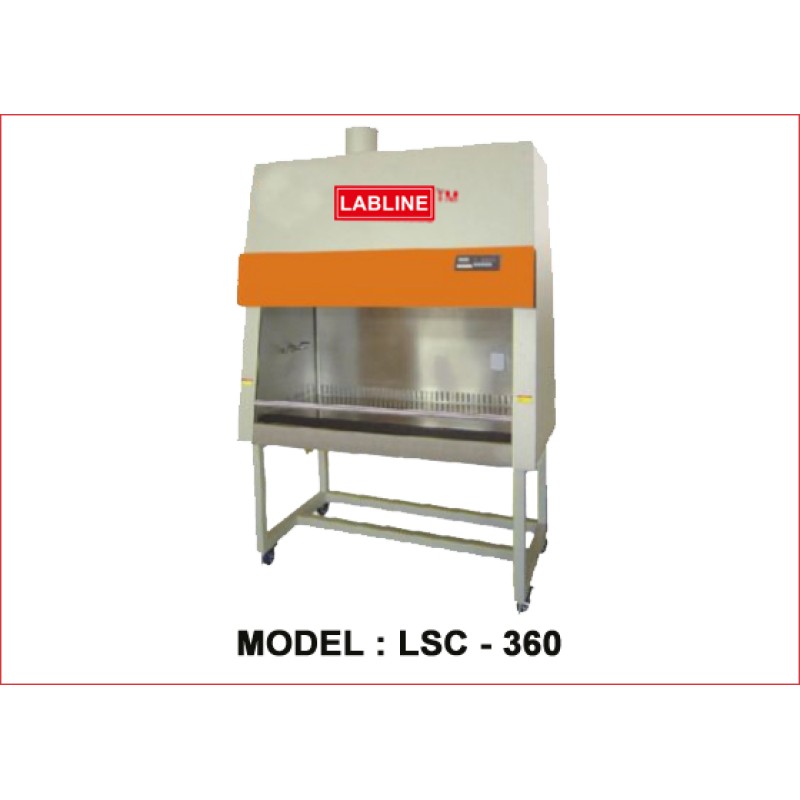

Biosafety Cabinet

Unique Features :

• Ergonomic Design
• Negligible Maintenance

Applications :

• The application includes isolation and identification of plant / human pathogens, work in virology, tissue culture, sterility testing and recombinant DNA research.
• This Biohazard Cabinet offers operator protection from low to moderate risk biological agents (or Chemical carcinogens), while providing a sterile work environment for the procedure.
• The cabinet is kept under negative pressure with partial quantity of recirculated air exhausted through a HEPA filter.
• The Additional main features are as under :-
• Specially suited for wet processing, water fab, chemical work, critical biological work involving virus and pathogens & for microbiology, biochemistry etc.

Construction :

• Biosafety complete construction made of mild steel powder coated with perforated stainless steel table top. or
• Biosafety complete construction made of stainless steel Quality 304 / 316 with perforated table top.
• Integral powerful exhaust system, Built in positive Air Curtain effect to prevent inside air from going out and room from entering in, providing total process and operator safety.
• Exhaust ducting to carry the air outside.
• Front sliding door, U.V. light, Manometer, Gas cock etc. as Standard accessories.

Safety Features :

• AIR FLOW : 70% of the air is recirculated back in to work area and 30% of the air is HEPA filtered and exhausted out to the environment via a dedicated duct without mixing with the recirculated air.
• Technical Specification :
• HEPA Filter : Media Glass fibre paper -Imported
• Particle retention : 0.3 micron
• Efficiency : 99.97%
• Pressure Drop : 23mm WG
• Pre Filter : Media Non woven -Sysnthe c Polyster (Washable)
• Particle retention : 10-15 microns
• Efficiency : 90%
• Pressure drop : 6 mm WG
• Blower Assembly : Single phase motor, 1440 RPM, directly coupled with a pair of Aluminium, Centrifugal impeller capacity 1000 CFM, Pressure 30mm WG
• Exhaust Assembly : Single phase Motor, 1440 RPM directly coupled with Aluminum impeller, Capacity-300 CFM, Ducting vy PVC pipe with rain guard-DIA 150mm
• Ultra Violet Light : Imported make i.e. SANYO Japan, Philips Holland
• Fluorescent Light : 2 or 4 feet with diffuser any standard make i.e. Philips, Surya etc.
• Standard Accessories includes : Pressure Manometer, Additional Power Point, Gas Inlet Nozzle, Caster Wheel, Wire cord as per customer requirements.

Optional Accessories :

• External Exhaust from the Laboratory
