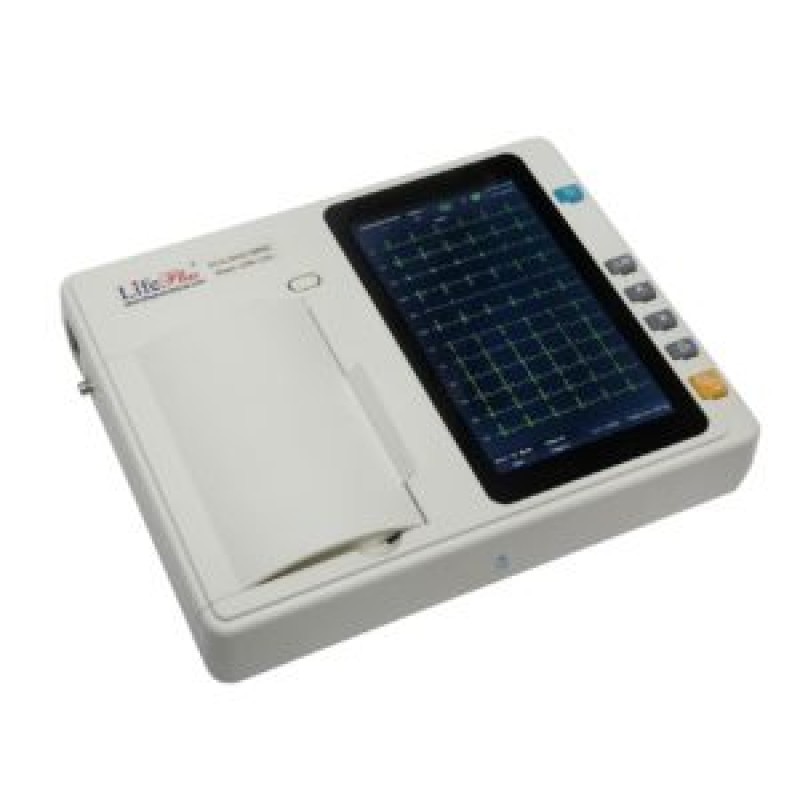

ECG Machine

Product Details:

Features
1. 3 Channel, Singel Channel, Singel Channel + R Print 2. 1 Lead Display on Screen 3. Built in thermal Printer (54mm) 4. Simultaneous 12-lead acqunition 5. Built in rechargeable battery 6. Automatic and Manual recording modes 7. Lightweight, 2.5 kg inclusive of battery. 8. Complete digital filter to avoid baseline drifting and interfering from AC, EMG

Description:

3 channel ECG Machine

LPM1203iItem Specifications Lead standard 12 leads, 3 Channeld print and 1 lead display on screen Lead acquisition synchronously 12 leads Data acquisition 18bit / 1000Hz Record Mode Manual Mode & Automatic Mode Filter AC, EMG, Drift Filter Input Circuit Floating; Protection against Defibrillator & Pacemaker Input Circuit Current =0.1µA Input Impedence =2.5MO Patient Current leakage<10µA Calibrating voltage 1mV±2% Voltage Tolerance ±500mV Time Constant >3.2s Frequency Response 0.05~150Hz Noisy Level =15µV Sensitivity valve =20µV Inter-Channel Interference =0.5mm Paper speed 25 / 50mm/s(±3%) Sensitivity AUTO, 2,5,5,10,20mm/mV Recording mode Thermal Array printing Paper Specification 50mmx20m, roll LCD Display 20×2 character LCD, display status Safety classification IEC60601-1 class 1, type CF Power supply AC: 110V/220v/85~265V,50/60Hz±1Hz;30VA DC: 12V(1500mAh)rechargeable battery
