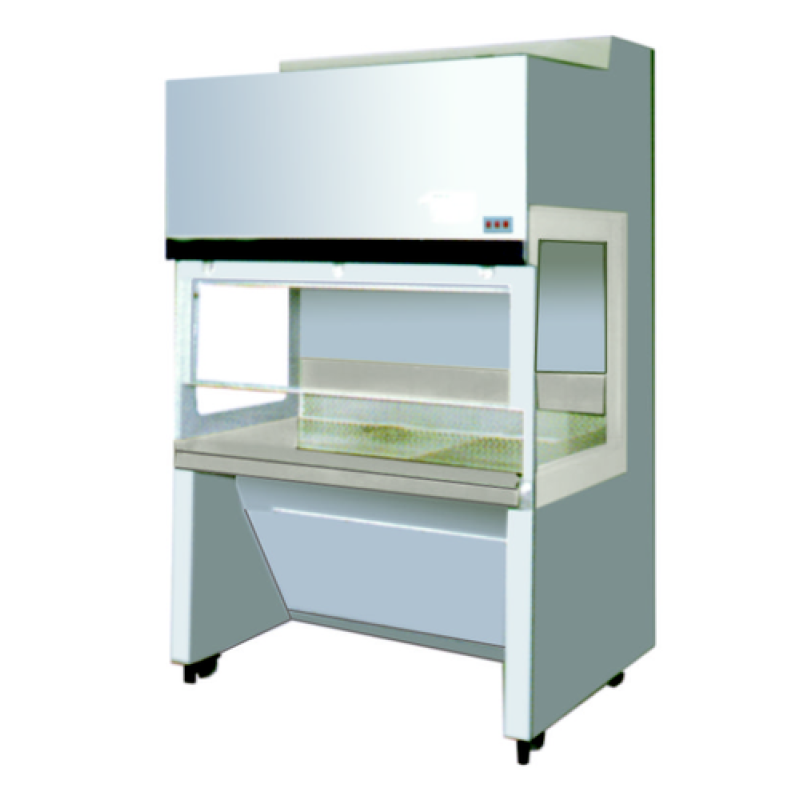

Biological Safety Cabinet
Product Details:
The Cabinets Are Fabricated Out Of Thick Board Duly Sunmica Clad. Interior Surfaces Are Epoxy Painted For Its Longer Life. The Work Table Is Made Of Heavy Gauge S.s. Sheet And Is Fitted With U.v. Germicidal Light, Static Pressure Manometer, Exhaust System (suitable For 6 Feet Duck) And Virus Burn Out Unit. Side Panels Are Made Out Of Thick Transparent Plexi Glass Duly Framed. The Unit Is Fitted With Pre-filter And Hepa Filter. Air Is Drawn Through Pre-filter And Is Made To Pass Through Highly Effective Hepa (high Efficiency Particular Air) Filtershaving Efficiency Retaining All Air-boarne Particles Of Size 0.3 Micron And Larger. Using A Dynamic Balancing Machine, The Blower And Motor Assembly Is Statically And Dynamically Balanced. Motor Of 1/4 H.p. Capacity Operates With Minimum Noise Level. The Working Area Is Illuminated By Flourescent Lighting Fitted To The Unit. The Hight Of The Working Table Provides A Comfortable “sit Down” Working Position For The Operator. In Addition To The Above Futures Of A Standade Vertical Laminar Flow Bench, The Bio-safe Cabinets Have Arrangements For Re-circulating A Part Of The Air Thus Creating Highest Levbel Of Clean Air.
The Unit Is Also Convertible To The Conventional Vertical Laminar Flow Bench With Downward Air Flow By Lifting The Sliding Fron Door Upwards. Air Is Sucked Through The Pre-filter And The Excess Air Is Thrown Out From The Top. Through A Hepa Filter Of Size 1' X 1' X 6'’. Supplied With Glove Ports And Gauntlets, Hepa Filter, Pre-filter, U.v. Light And Flourescent Light.
Description :

Working Size		3' x 2' x 2'	4' x 2' x 2'	6' x 2' x 2'
Size of HEPA Filter		3'x 1.5 ' x 6'’	4' x 2' x 6'’	3'x 1.5 ' x 6'’
No. of HEPA Filter		1	1	2
Illumination		1 x 20 W	2 x 40 W	2 x 40 W
				-
