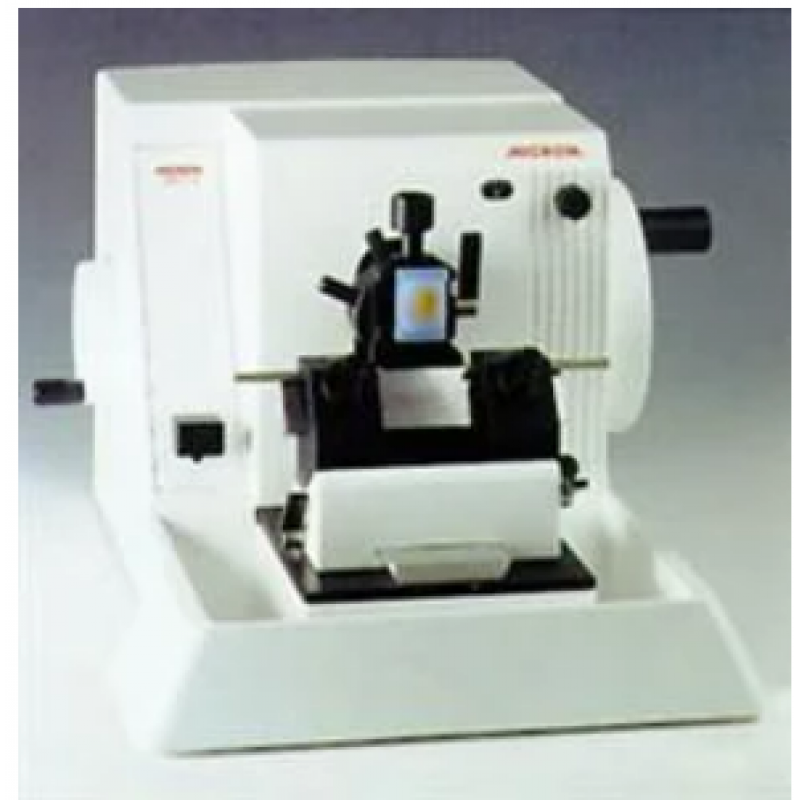

Biological Microtome

Leveraging on our rich vendor base, we offer an extensive range of microtome to our customers. Our range has the features of precise and accurate serial sectioning, with feed setting visible from front, improved locking device -and counter balanced wheel. Light weight cover hinged at back provides for easy access to internal parts for cleaning and oiling. Feed is adjustable from 1 to 50 microns in steps of 1 micron. Free up and down movement of object clamp. Automatic restricted total excursion of 28 mm by disengaging the feed mechanism to prevent jamming.

Ball and flange object clamp provides flexible orientation of object piece. Takes specimen up to 32x27 mm on stem of block holders. Knife holder allows for 120 mm on 180 mm long knife. Cutting angle is adjustable through 30 degrees. Two levers release knife holder for resetting angles and a third lever releases the entire assembly for movement on slide way to adjust horizontal distance from object.

Latest cam system eliminates the conventional cord system for feeding, resulting in better section cutting and improved efficiency of the machine. Our range is provided with one knife 120 mm long with back and handle in wooden box, 2 block holders, one bottle of lubrication oil, rexin cover complete in all respects.

Spare Accessories :-

• Special Alloy Steel Knife, comes in size: 120 mm, 150 mm, 180 mm, 200 mm
• S.S. Back for Knife
• Block Holder/Specimen Holder, comes in size :- (Dia) 37 mm, 25 mm, 20 mm
• Embedding Moulds made of S.S.
• L-Moulds made of brass.
• Disposable Embedding Ring.

Our range is elegant and sturdy, latest range of incredibly reliable Microtomes. These are made for excellent precision and quality sectioning. Unique adjustable block holder, allowing technicians to alter the block angle for poorly embedded tissue. Rugged, sturdy construction for easy to operate, maintain and quick to clean. Complete with counter balancing wheel, automatic feed mechanism and feed release. Light aluminum cover hinged at back, protects the internal mechanism. Heavy casted base plate fitted with heavy rubber pads to provide better grip. Some of the important features of our range are as follows:

• Smooth operation
• Extremely versatile for uniform serial sectioning adjustable from 1 to 50 microns in step of 1 micron
• Feed mechanism is independent of other movements
• Supplied complete with one knife, having back and handle in wooden box, 6 block holders, One bottle of lubricating oil and rexine cover

Spare Accessories :-

• Special Alloy Steel Knife comes in various size: - 120 mm, 150 mm, 180 mm, 200 mm  S.S. Back for Knife
• Block Holder/Specimen Holder comes in various size like - (Dia) 37 mm, 25 mm, 20 mm
• Embedding Moulds made of S.S.
• Disposable Embedding Ring.
