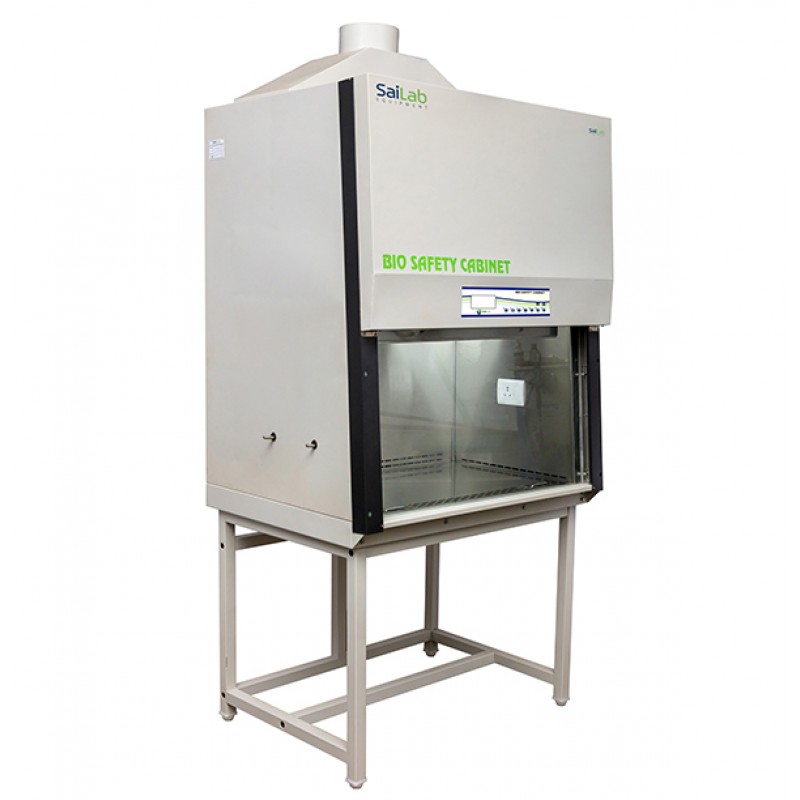

BioSafety Cabinet Class II B2
Product Details:
Salient Features of Micro-Processor Controller :
Manual Function Mode
- 2.5inch 128 x 64pixel blue/white graphic LCD display.
- Motorized Door on up/down touch keys.
- UV/florescent light/power on/off soft touch key.
- Blower Motor on / off in touch key.
- Inter Socket Manual on / off touch key.
- Buzzer Silent soft touch key.
- Power on / off soft touch key.
- Display of air pressures in the LCD screen.
- Alarm if the door is opened beyond 200 mm.
- User Program
- UV timer
- UV Lamp Life
- Reset UV hours
- To set Auto clean Auto Clean Mode
- Change Password Auto Function Mode
- Display of down flow and up flow by deferential pressure
- Alarm is activated in case of airflow deviation over 20%
- Blower will go off when the door is closed
- Fluorescent lamp will not be active when UV is on
- UV will not get on when florescent is on
- Blower will be shut off when UV is on.
- Alarm if the door is opened beyond 200 mm.
- Timer for UV light (0-59 minutes).
- Bio-Safety Cabinet Class II B2 Manufacturers
Technical Specification :
- Type B2 Class II Biological Safety Cabinets have an open front design provided with negative pressure generation module. Type B2 cabinets are typically used for biosafety levels 2 through 3 and are suitable for work with hazardous chemicalsand will not recirculated, cabinets protect from contamination of the works, experiment or process from outside contaminants.
- The ergonomic internal design, the airflow aerodynamics, the built-in safety devices and the advanced level of construction, ensure the highest performance at the most stringent safety levels, as specified by international standards. The system combines a multitude of design, construction and technological considerations to provide optimum operator, product and environmental protection. Stainless steel construction and simple design make it easy to clean after use. The powder coating finish prevents microbial / bacterial growth on the exterior side and delivers a sleek and graceful appurtenance.
| SPECIFICATIONS OF BIOSAFETY CABINET A2 MODEL | |||||
|---|---|---|---|---|---|
| Main Filter | HEPA Filter (99.97% Efficient At 0.3-Micron Particulates To Meet Air Quality ISO Class 5 Equivalent To US FED STD 209 B, Class 100. | ||||
| Pre-Filter | Highly Efficient Washable Pre-Filter Efficiency 90% Down To 10 Microns. | ||||
| Illumination | Fluorescent Lamp Of 10/20/30/40 W (Greater Than 800LUX As Per Guidelines Laid In US Federal Standard. | ||||
| Sterilizing | UV Germicidal Tube Of 254mn Wavelength. | ||||
| Front Door | Motorized Door Lifting Arrangement At Press Of A Button. Door Made Of Toughen Glass (Polycarbonate Door Optional). | ||||
| Utility | Gas / Air Cock And Multipoint 15/5 AMP Electric Socket. | ||||
| Magnehelic Gauge | Magnehelic Gauge Analogue Type For Main HEPA Filter. | ||||
| Input Supply | AC 230V, 50/60 Hz | ||||
| Cabinet – MOC | Cold Rolled Powder Coated For STD Model. Stainless Steel 304 Grade Steel For GMP Model. | ||||
| Work Table | Stainless Steel 304 Grade (Optional Stainless Steel 316). | ||||
| Internal Work Zone Dimension | 2 X 2 X 2”(Ft), 3 X 2 X 2 (Ft) | ||||
| Size Of HEPA Filter (LxDxH) | 2 X 2 X 3”(Ft), 3 X 15” X 3”(Ft), 3 X 6” X 3” | ||||
| No. Of HEPA Filter | 2 | ||||
