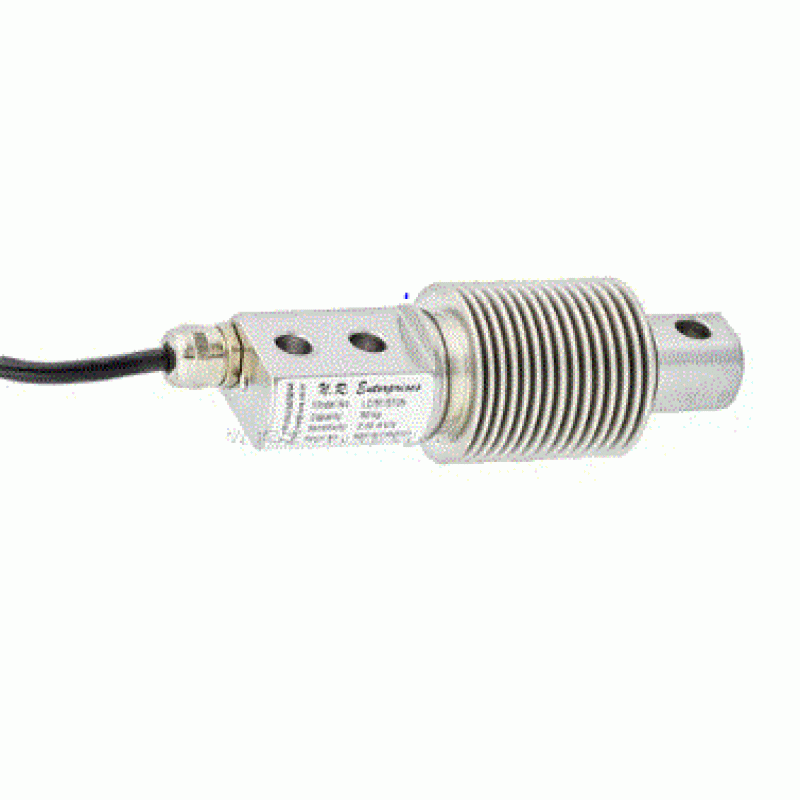

Bending Beam Load Cell
Product Details:

Type	Bending Beam
Material	Stainless Steel
Ingress Protection	IP67
Application	Portable Weighbridge
Capacity	50-1000 Kg
Features	Hermetically sealed
Creep Error (30 minutes)	+/-0.03% F.SO
Temperature Effect on Zero	+/-0.002 FS/DegC
Temperature Effect on Output	+/-0.001 FS/DegC
Zero balance	+/- 1% FS
Maximum Safe Overload	150% FS
Ultimate Safe Overload	300% FS
Input Resistance	390 +/- 3.5 Ohm
Output Resistance	350 +/-3 Ohm
Insulation resistance at 50V DC	>= 1000 M Ohm
Compensated Temperature Range	-10 to +40 Deg C
Operating Temperatue Range	-20 to +70 Deg C
Cable Length	1-20 metre

NRE is the leading manufacturer & exporter of Bending Beam Load Cells. These load cells are of the finest manufactured quality adhering to international standards
