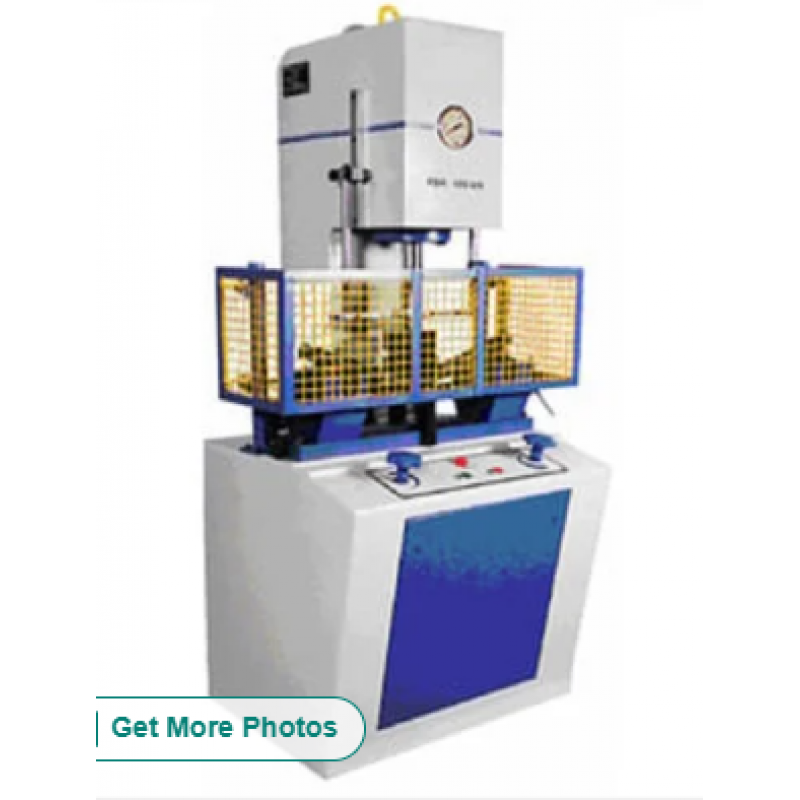

Bend Rebend Tester
Product Details:

Material	Mild Steel
Usage/Application	Industrial
Type Of Testing Machines	NA
Color	Blue
Display Type	Digital
Instrument Type	Bend Rebend Tester
Grade	Semi-Automatic

Hinged grilled safety door at front is provided.
Maximum load capacity : 10,000 Kgs.
Stroke of piston : 300 mm / min.
Height of fall : 250 mm.
Maximum operating pressure of hydraulic system : 200 kg / cm sq.
Diaofsupportrollers : 100 mm
Distance between support rollers (adjustable) : 400 mm.
Formers of following diameters provided : Dia. - 12, 16, 20, 24, 30, 32, 40, 50, 60, 80, 140, 175, along with machine 224, 280 mm
Suitable re-bending tools supplied which will be incorporated in the machine.
The up down of piston is through hand operated DC valve.
The piston speed during down stroke is adjustable through manual operation of flow control valve.
