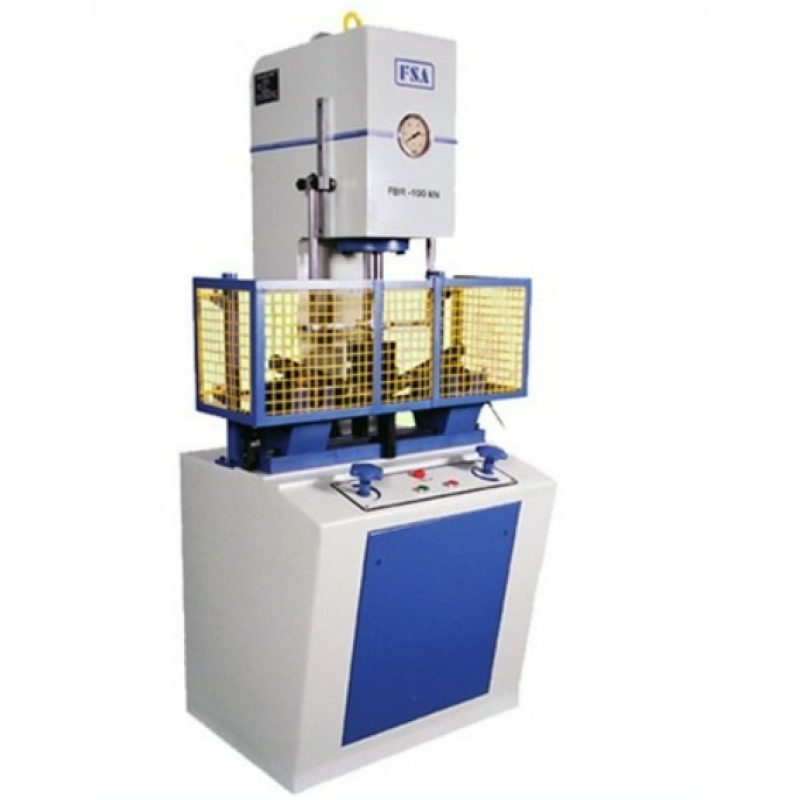

Bend And Re-Bend Testing Machine
Product Description
BEND & RE-BEND TESTING MACHINE
Features
- To Conduct testing of carbon steel bars upto 40 mm diameter for reinforcement for reinforcement of concrete.
- C- frame design & hydraulically operated.
- Maximum load capacity provided is 100 KN.
- Dia. of support rollers is 100mm & distance between support rollers is 400mm.
- Different sizes of formers (tools) are available from diameter 6 to 400mm.
- Our standard suppy are dia 16, 20, 24, 32, 40, 50, 60, 64, 80, 140, 175, 240 & 320 mm (14 nos. tools)
- Suitable re-bending tools supplied which will be incorporated in the machine.
- Hinged grilled safety doors at front is provided for safety.
- Accuracy conforming to BS: 4449.
Features
- To Conduct testing of carbon steel bars upto 40 mm diameter for reinforcement for reinforcement of concrete.
- C- frame design & hydraulically operated.
- Maximum load capacity provided is 100 KN.
- Dia. of support rollers is 100mm & distance between support rollers is 400mm.
- Different sizes of formers (tools) are available from diameter 6 to 400mm.
- Our standard suppy are dia 16, 20, 24, 32, 40, 50, 60, 64, 80, 140, 175, 240 & 320 mm (14 nos. tools)
- Suitable re-bending tools supplied which will be incorporated in the machine.
- Hinged grilled safety doors at front is provided for safety.
- Accuracy conforming to BS: 4449.
