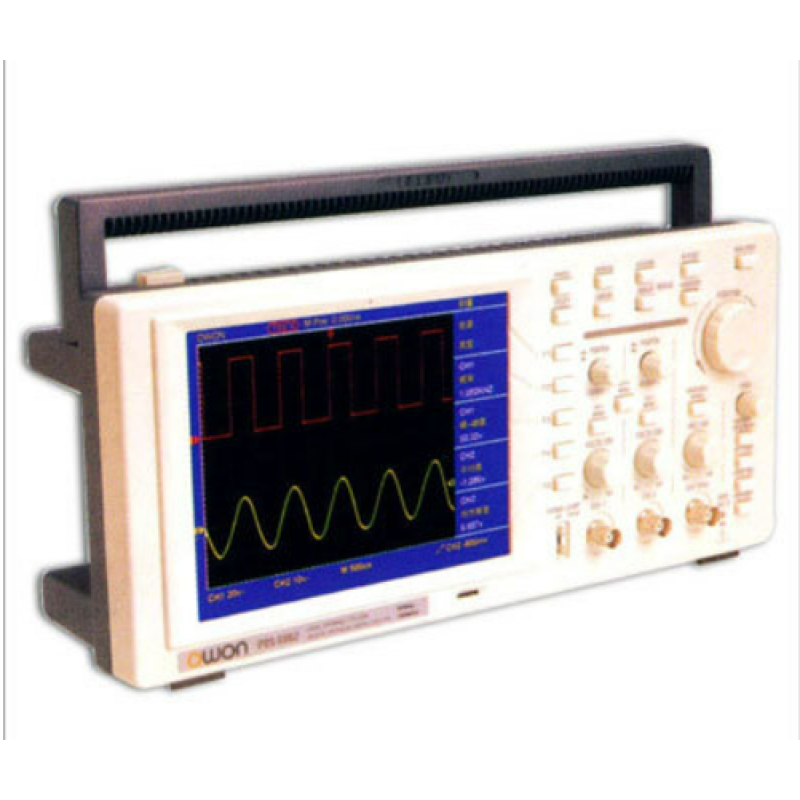

Bench Digital Storage Oscilloscope
Our customers can avail from us wide array of Bench Digital Oscilloscope. Our Oscilloscope is manufactured using finest quality material.
These are extensive used in academic and other educational sectors. Our oscilloscopes are used to observe the exact wave shape of an electrical signal. All our oscilloscopes generally use cathode ray tubes as their display element and linear amplifiers for signal processing. We also offer oscilloscopes with LCD or LED screens, digital signal processors and analog-to-digital converters.
The features are:
Display | 7.8’’ STN colour LCD |
Bandwidth | 40 Mhz |
Channels | Dual |
External trigger inputs | Present on all this series |
Real-time sample rate | 100MS/s |
Record length | 6K points per channel |
Vertical Resolution | 8-bits |
Vertical sensitivity | 5mV-5V/div |
DC Vertical Accuracy | ±5% |
Max Input Voltage | 300V CAT II |
Position Range | ±50V(500mV―5V),±2V(5mV―200mV) |
Input Coupling | AC,AD |
Input Impedance | 1MΩ±2% in parallel with 20pF±3 pF |
Time base range | 5ns-5s/div |
Time Base Accuracy | 100ppm |
Trigger modes | Auto, Free Run, Single shot, Edge, Video |
Power | 100-240 VACRMS, 50Hz, CAT II |
