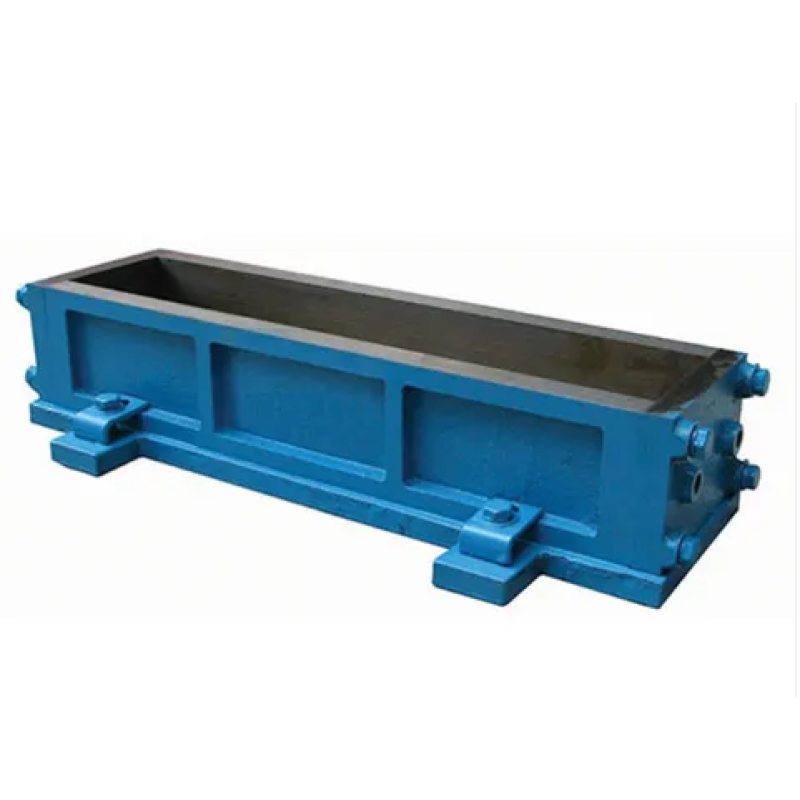

Beam Mould

Standards	BS 1881-108
Model No	SET-1120

Se Test India Pvt. Ltd is a renowned organization, which has gained enough positive feedbacks from its customers all around the world. It is the manufacturer and supplier of beam mould, the concrete testing lab equipment of identified standard quality.

The standard module for the beam mould : In Se Test India Pvt. Ltd, we are always cautious about the standard module of our products. As we export them to the customers of all over the world, we carefully maintain the international standard of this product BS 1881-108.

Product Description : There are 2 sets available in this product. One is Set -1120 A. Its beam mould is 100mm X 100mm X 500mm and the other is the Set – 1120 B. Its beam mould is 150mm X 150mm X 700mm. The flatness of the faces is +/- 0.2 mm and it is also finished in 0.2 mm.

SET-1120 A	Beam Mould 100mm x 100mm x 500mm
SET-1120 B	Beam Mould 150mm x 150mm x 700mm

Specification:

• The material of the apparatus is cast iron/ mild steel.
• There are four plates in the mould and they are assembled together.
• Each mould is completed with its assembly with the base one.
• The face part of the machine is flat in type.
