BYE PASS ROTAMETER

Product Details:

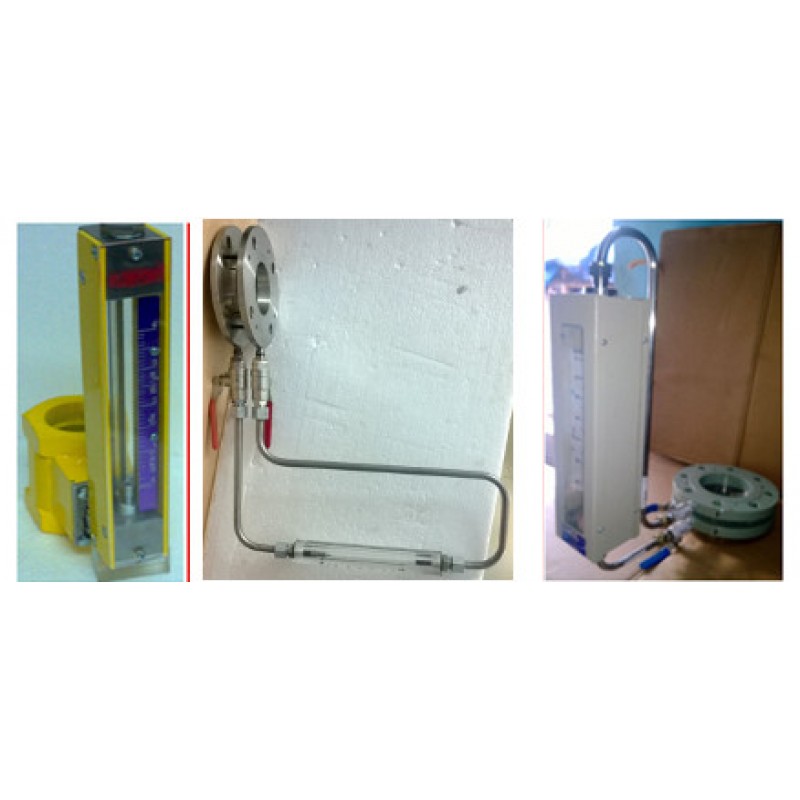

Suitable for measuring Rotameters in 50 NB & above pipeline sizes. Available upto 450 NB line size in a variety of materials. Complete assembly consists of Orifice Plate, Carrier Rings, Impulse Tubing, Isolation Valves and Rotameter. Byepass Rotameters with D & D2 tappings are available against specific enquiries.

Application Fluid Media
:
Air Gases/Water,Liquid,Acid
Ranges
:
Between 20 to 800 M3/HR of Water. Higher Flow and higher line sizes on request

Units :- Lpm, Lph, cc/min, Ml/min/Scfm.

Performance Specification :-

Repeatability 10	:	1
Operating Principle	:	Variable Area Type
Design of Rotameters	:	Glass Tube Type/(PMMA) Transparent Acrylic Body Type
Max PRESSURE	:	12 KG/CM2
ACCURACY.	:	± 5% F.S.Overall, Calibrated at STP

Environmental Specification :-

Ambient Temperature	:	5-60 Deg.c
Ambient Pressure	:	0.985 to 1.05 Atm.

Physical Specification :-

Line size	:	1/2" to 4"
Flange Standard	:	ASA 150 RF /BS 10 TABLE D, E, F, /DN, PN
FLANGE MOC	:	SS316/SS 304/PP/UPVC
FLOAT MOC	:	Conical SS 316/ SS 304
WETTED PART	:	SS 316/SS 304L/MS POWDER COATED
ROTAMETER LINE	:	PIPE LINE ½" OD SS 304
VALVE	:	1/4" BALL VALVE SS 304
ORIFICE PLATE	:	4 MM THICKNESS SS 316
BODYCASING SIDE PLATES MOC	:	SS 304 WITH SHINING BUFFED/MS EPOXY COATED/ALUMINIUM WITH TWO TONE POWDER COATED EXCELLENT FINISH/(PMMA) Poly(methyl methacrylate), Transparent Thermoplastic Acrylic Clear
METERING TUBE MOC	:	HEAVY WALL TEMPERED BOROSIL TAPERD GLASS OF 4.8 MM WALL THICKNESS FPG. TRANSPARENT ACRYLIC TUBE DRILLED & MACHINED WITHTAPERED REAMER CUTTER INSIDE THE BODY.
GLAND PACKING	:	SILICON, VITON, EPDM, OVERWRAPPING TEFLON COVER CAP
FITTING TO FITTING DISTANCE	:	350 MM
SCALE	:	MILKY WHITE ACRYLIC WITH BLACK SCREEN PRINTING LETTERS/ALUMINIUM ANODIZED/SS ENGRAWING/ CERAMIC INK ETCHED ON METERING TUBE
MOUNTING.	:	VERTICAL /HORIZONTAL.
