BASIC ELECTRO – HYDRAULIC TRAINER (HYD – 04)

Product Details:

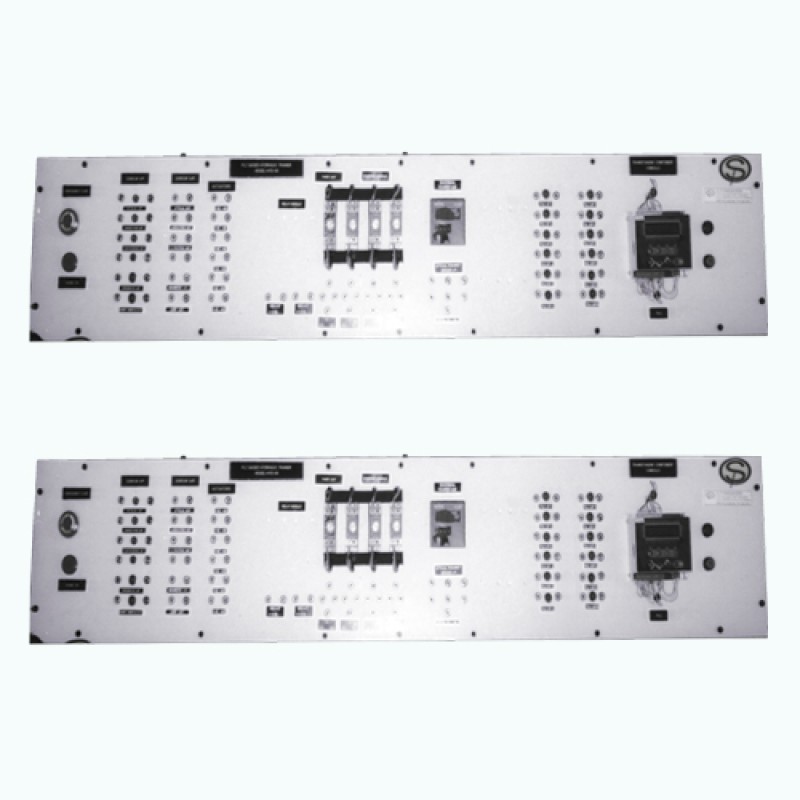

Hydraulically driven devices can be regulated by electrical controls very efficiently.  Due to this Electro-Hydraulic is widely used in all industries for a variety of applications. Power supply of 24 VDC is part of system & all valves operate on safe 24 VDC. This combination of Hydraulic and electrical control is very effective tool in automation. The Electro-Hydraulic trainer emphasizes this concept, which is widely used in today’s industry for the automation of machines and machining related processes. The components for the trainer are plate mounted and can be easily mounted on the working panel.  Quick Release Coupling is the important feature for easy connection between components. This trainer is mounted on trolley for easy movements.

Range Of Experiments

1. Direct control of double acting cylinder using electrical switch
2. Direct control of double acting cylinder using electrical switches

3. Indirect control of double acting cylinder using internal pilot operated valve
4. Indirect control of double acting cylinder using internal pilot operated valve

5. Study of Limit switch.
6. Study of stoke dependent circuits.

7. Study of relay circuit.
