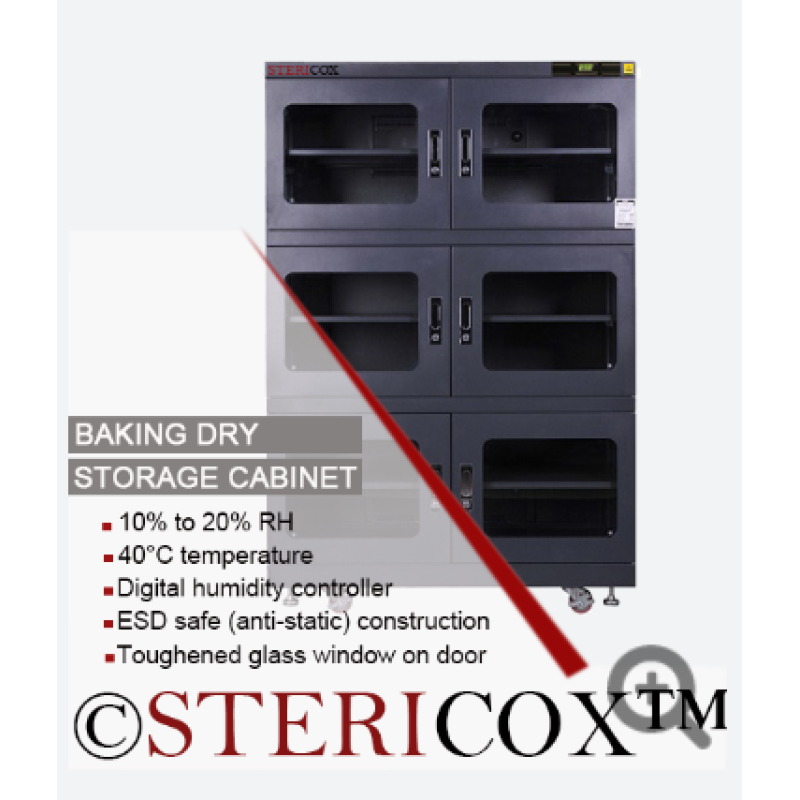

BAKING DRY CABINET

Baking dry cabinets are especially designed ESD cabinets for electronic components and PCB storage under hot and dry atmosphere. These low humidity baking dry cabinets are ideal for restoring shelf life of electronic components that have been exposed to ambient humidity. These baking cabinets come with heating at 40°C or 60°C with low humidity range 10% to 20% or below 5% as required. Compared to traditional high temperature ovens, these baking dry cabinets have become widely accepted equipment in baking components. These cabinets can also be used as normal low humidity cabinets without heating.

FEATURES & BENEFITS

• Temperature 40°C or 60°C
• User adjustable 10% to 20% RH
• Digital humidity controller
• Can be used without heating
• Meet IPC/JEDEC J-STD 033 standards
• ESD safe (anti-static paint) construction
• Nitrogen systems are available as an option

TECHNICAL SPECIFICATIONS

Temperature	40°C
Humidity	10% to 20% RH
Display precision	±3.0%RH, ±1.0°C
Controller	Digital humidity controller
Sensor	Honeywell sensor for humidity
Construction	1mm steel sheet with anti-static paint (ESD safe)
Lock	Zinc alloy air tight lock
Windows	Toughened glass window on door
Wheels	Caster wheels with brake
Optional	Temperature 60°C Automatic control <5% RH Nitrogen system Data Logger with USB port Door open alarm Over humidity alarm
Power supply	220 Volts 50Hz

STANDARD SIZES / DIMENSIONS

Model	Volume	Inner Dimensions (W x D x H)	Overall Dimensions (MM)	Shelves
BDC4098	98L	446 x 372 x 598	448 x 400 x 688	1PCS
BDC40160	160L	446 x 422 x 848	448 x 450 x 1010	3PCS
BDC40240	240L	596 x 372 x 1148	598 x 400 x 1310	3PCS
BDC40320	320L	898 x 422 x 848	900 x 450 x 1010	3PCS
BDC40435	435L	898 x 572 x 848	900 x 600 x 1010	3PCS
BDC40540	540L	596 x 682 x 1298	598 x 710 x 1465	3PCS
BDC40718	718L	596 x 682 x 1723	598 x 710 x 1910	5PCS
BDC40870	870L	898 x 572 x 1698	900 x 600 x 1890	5PCS
BDC401436-4	1436L	1198 x 682 x 1723	1200 x 710 x 1910	5PCS
BDC401436-6	1436L	1198 x 682 x 1723	1200 x 710 x 1910	5PCS
