Automatic Quantitative Concentrator-VortexVap A12
Product Description :
Automatic quantitative concentrator-VortexVap A12

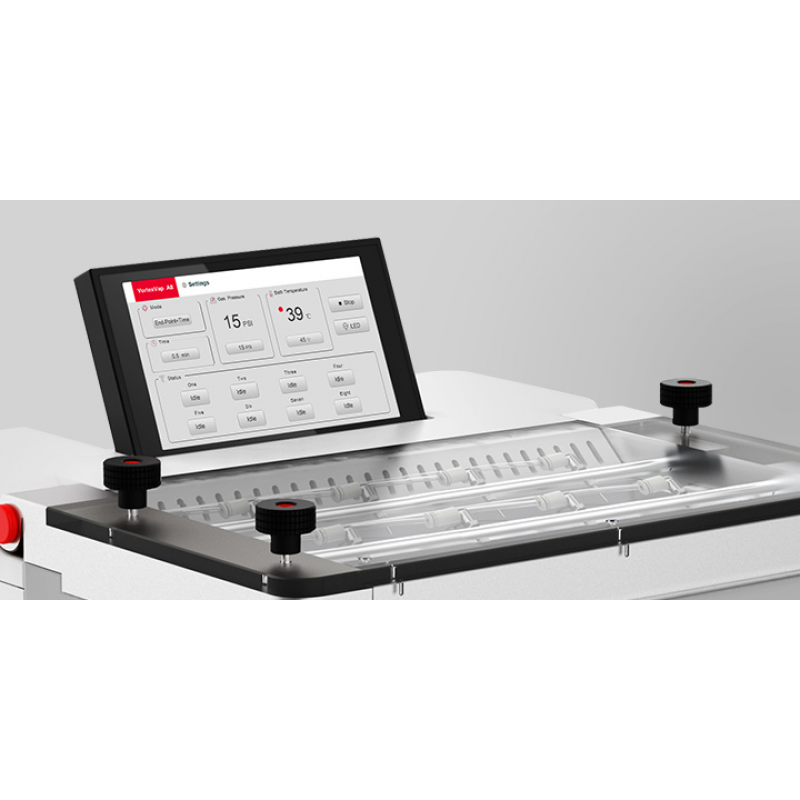

The VortexVap A12 automatic quantitative concentrator adopts the nitrogen oblique blowing mode and the principle of vortex airflow, so that the liquid sample can be quickly concentrated under the heating of the water bath. 12 samples can be concentrated at the same time, and each sample tube is equipped with an optical sensor, which can accurately quantify the liquid in the sample tail tube. The instrument is controlled in real time through the color control screen that comes with the instrument, and the one-button operation makes the concentration easier. VortexVap A12 has the characteristics of fast concentration, good repeatability, high degree of automation, environmental protection and safety. It is an indispensable organic sample pretreatment equipment in laboratories.
Features
User-Oriented Design Features
- Concentrate single or multiple samples simultaneously without manual attendance
- It can accelerate solvent evaporation and concentration and prevent solvent splash loss
- Environmental protection, safety, etc.
Flexible configuration :
- Fast concentration, good repeatability and high degree of automation
- The instrument comes with an automatic pressure regulating device, the airflow pressure can be automatically controlled and kept constant, and is not affected by the sudden opening, closing or quantity of the working channel (sample)
Product Specifications :
system host
| Gas source | Inert gas such as nitrogen is recommended |
| Required pressure at full load | 0.6MPa (87PSI) |
| Maximum allowable intake pressure | 0.9MPa (130PSI) |
| water bath temperature range | Room temperature to 90°C, ±1°C |
| Heating time | <40min (from 20℃ to 55℃) |
| Pressure automatic control adjustment time | 1S (this function is optional) |
| touch screen | 7 inch color touch screen |
other
| exhaust | Built-in exhaust fan and exhaust interface, with 3m long exhaust pipe |
| operating temperature | 18°C~32°C |
| Storage temperature | 0~60°C |
| humidity | 20% ~ 90%RH (non-condensing) |
| Maximum power consumption | 1000VA |
| weight | 27kg |
| Dimensions (WxDxH) | 430x440x300 (550mm height with lid open) |
| maximum noise | 75dB |
| Certification | CE Mark |
