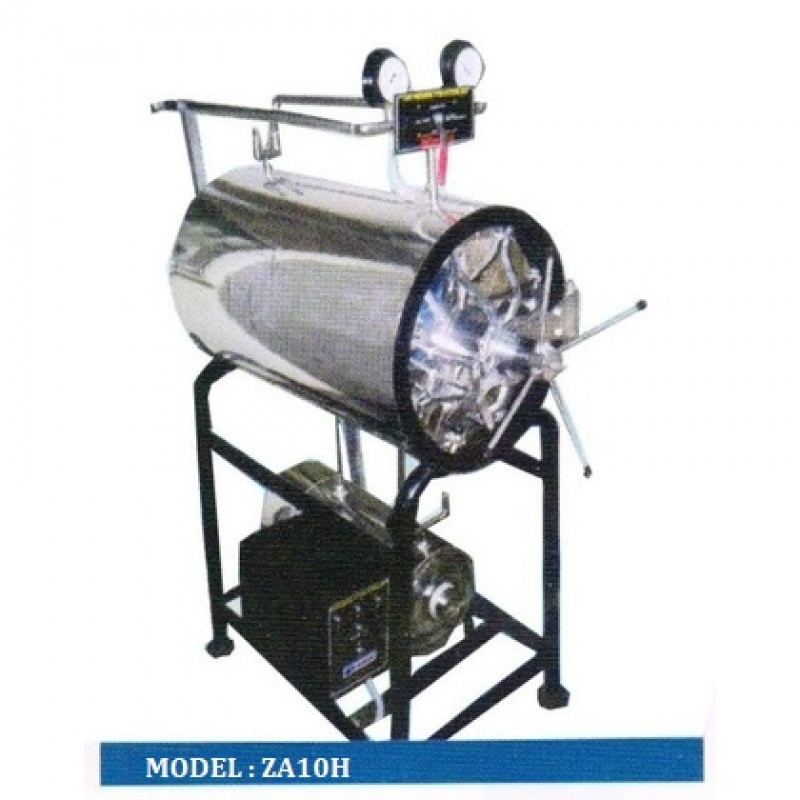

Zonotech Horizontal Autoclave Model -ZA10H
Product Details :
Triple walled with steam jacket and separate boiler. Inner chamber and steam jacket are made up of Heavy gauge S.S. Sheet with leak proof argon-arc welding.The sterilizer has single piece S.S Door. All the sterilizers are hydraulically tested to withstand 2.5 times the working pressure.
Mounted on tubular steel frame with ground leveling screwed flanges. The Outer jacket is wrapped with asbestos sheet or glass wool to minimize the heat losses due to radiation and is covered by polished Stainless steel sheet for that elegant appearance.
Model : ZA10H
Triple walled construction.
- Inner chamber and jacket are made of high grade stainless steel 304 sheet. The outer body is made of thick stainless steel sheet.
- The lid is made of thick stainless Steel plate WITH SAFETY LOCKING DEVICE. The boiler placed below the chamber is made of stainless steel with view glass and immersion heaters. with low water level cut off.
- A multiport valve made of SS is installed forcontrolling the sterilization cycle. The pressure is adjustable from 5 to 20 psi i 1psi controlled by automatic pressure control switch.
- Fitted with vacuum breaker, steam trap, dial type temp. gauge. The whole unit is mounted on a robusttubularstand made of MS duly painted. Suitable to operate on 440 V, 3 phase AC supply.
INNER SIZE :
DIA (MM) | 400 | 500 | 550 | 400 | 500 |
DEPTH (MM) | 600 | 900 | 750 | 1100 | 1200 |
