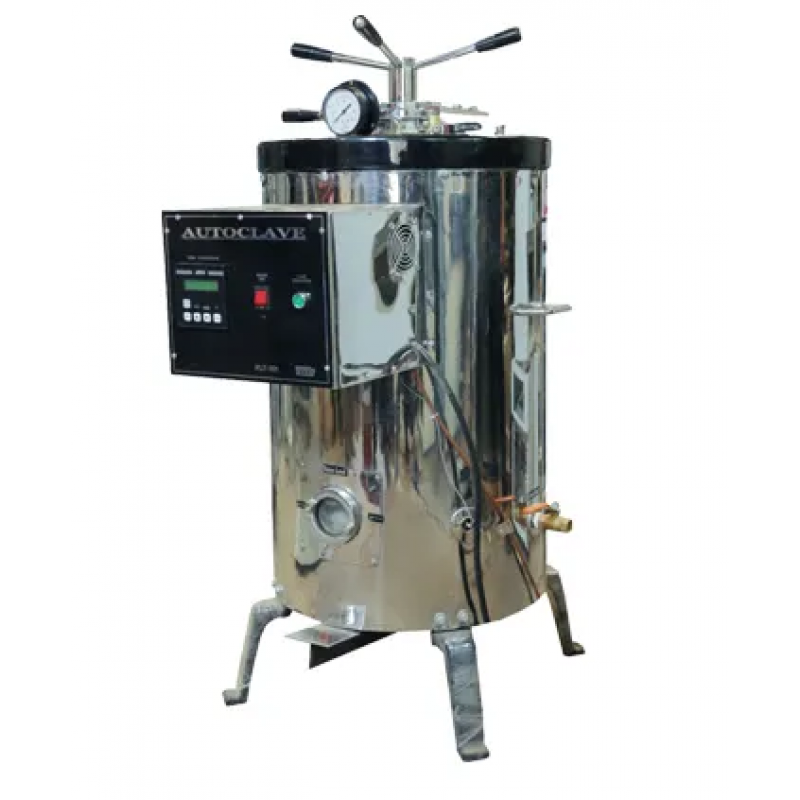

Vertical Autoclave

Insulation Wall	Double Wall
Automation Grade	Fully Automatic
Usage/Application	Laboratory
Brand	U-TECH
Shape	Vertical
Warranty	1 year
Capacity	152 Ltr
Voltage	220 V
Size	550 mm x 750 mm
Frequency	50 Hz
Electric Load	5 KW

Vertical Autoclave based on the principal of saturated steam sterilization. Electrically heated. Used for sterilization of rubber, utensils, Linen, plastic, dressing material, surgical items, glassware, labwares etc. It is used in scientific research institutions, universities, hospitals, mushroom centres, tissue culture labs etc. Sturdy construction, Double walled, Inner chamber i.e. boiler made of 16 SWG stainless steel of 304 quality, outer shell is made of thick mild steel duly painted. The boiler and outer shell is provided with air insulation. Lid is made of thick SS duly Stainless steel lined and is tightened by Radial locking system. Lid is mounted on a central screw and is provided with best quality joint less neoprene gasket to avoid any risk and trouble free operation.

These autoclaves are fitted with paddle lifting device to open/close the lid. Fitted with glass indicator to indicate the water level inside the boiler. Automatic Pressure Controller Switch PID Temperature + Timer. These autoclaves are fitted with pressure gauge, steam release cock, safety valves, spring loaded safety valves, etc. These autoclaves can be set at any pressure in between 5 to 22 P.s.i. Provided with a drain valve. These autoclaves are hydraulically tested up to 40 P.s.i. Provided with ISI mark heating elements which are easily replaceable and heats the water to desired temperature and pressure. Pressure is indicated by the pressure gauge.

Specification:

Size (Dia x Depth)	Size (Dia x Depth)	Size (Dia x Depth)	Size (Dia x Depth)	Outer & Inner SS
250 mm x 450 mm	(1.5 KW	22ltr	Rs. /-each	Rs. /-each
300 mm x 500 mm	(2 KW)	40ltr.	Rs. /-each	Rs. /-each
350 mm x 550 mm	(3 KW)	50ltr.	Rs. /-each	Rs. /-each
400 mm x 600 mm	(4 KW)	78ltr.	Rs. /-each	Rs. /-each
450 mm x 600 mm	(4 KW)	98ltr.	Rs. /-each	Rs. /-each
