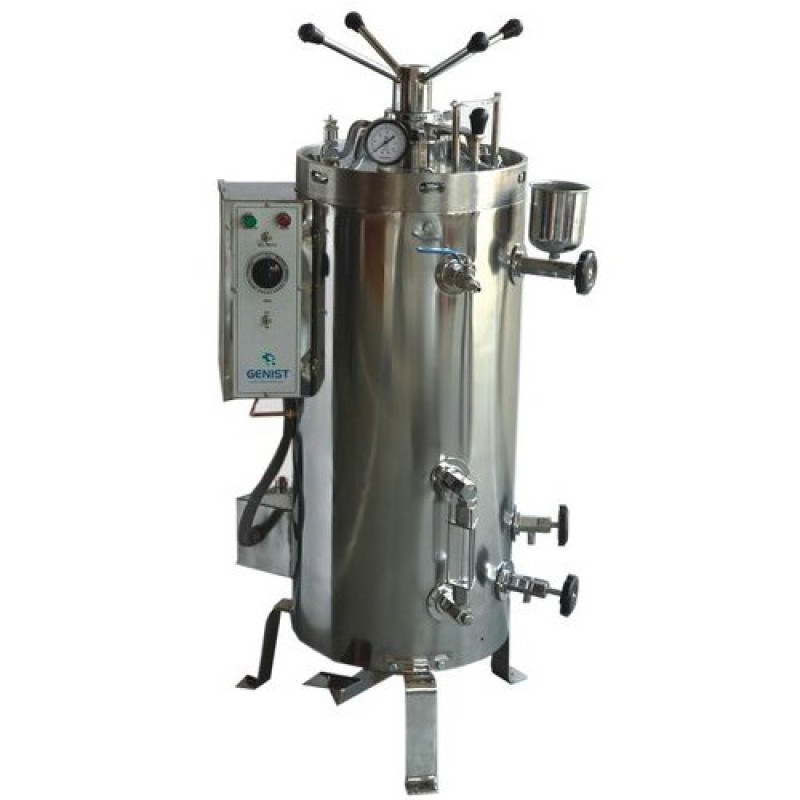

Vertical Autoclave
Product Details :
| Insulation Wall | Double Wall |
| Automation Grade | Fully Automatic |
| Shape | Vertical |
| Power Consumption | 1 KW |
| Chamber Volume | 20 L, Also available in 40 L, 50 L, 78 L, 98 L, 152 L |
| Model Number | RA-101 RAKO |
| Material | Stainless Steel |
| Size | 250x450 mm,Also Available in 350x500 mm,350x550 mm,400x600 mm,450x600 mm,550x750 mm |
Being a trustworthy name in the industry, we are able to offer a superior quality array of Vertical Autoclave to our patrons.
Description:
- Based on the principal of saturated steam sterilization. Electrically heated. Used for sterilization of rubber, utensils, Linen, plastic, dressing material, surgical items, glasswares, labwares etc. It is used in scientific research institutions, universities, hospitals, mushroom centres, tissue culture labs etc.
- Inner Body: Study Construction, Double Walled, Inner Chamber i.e. boiler made of 16 SWG Stainless Steel of 304 Quality
- Outer Body: Outer Body is made of thick mild steel duly Painted.
- Boiler and Outer Shell: The boiler and outer shell is Provided with Air Insulation.
- Lid: Lid is made of thick SS duly Stainless Steel lined and is tightened by Radial Locking System. Lid is mounted on a central screw and is provided with best quality joint less neoprene gasket to avoid any risk and trouble free operation.
- Lifting Device: The autoclaves are fitted with paddle lifting device to open/close the lid. Fitted with Glass Indicator to indicate the water level inside the boiler.
- Pressure Controller: Automatic Pressure Controller Switch PID Temperature and Timer.
- Pressure Setup: These autoclaves can be set at any pressure in between 5 to 22 P.s.i. Provided with drain valve.
- These autoclaves can be set at any pressure in between 5 to 22 P.s.i. Provided with drain valve. These autoclaves are hydraulically tested upto 40 P.s.i. Provided with ISI mark heating elements which are easily replaceable and heats the water to desired temperature and pressure. Pressure is indicated by pressure gauge.
- Supplied complete with stainless steel perforated basket, cord plug to work on 220 V +/- 9% 50 Hz, single phase.
