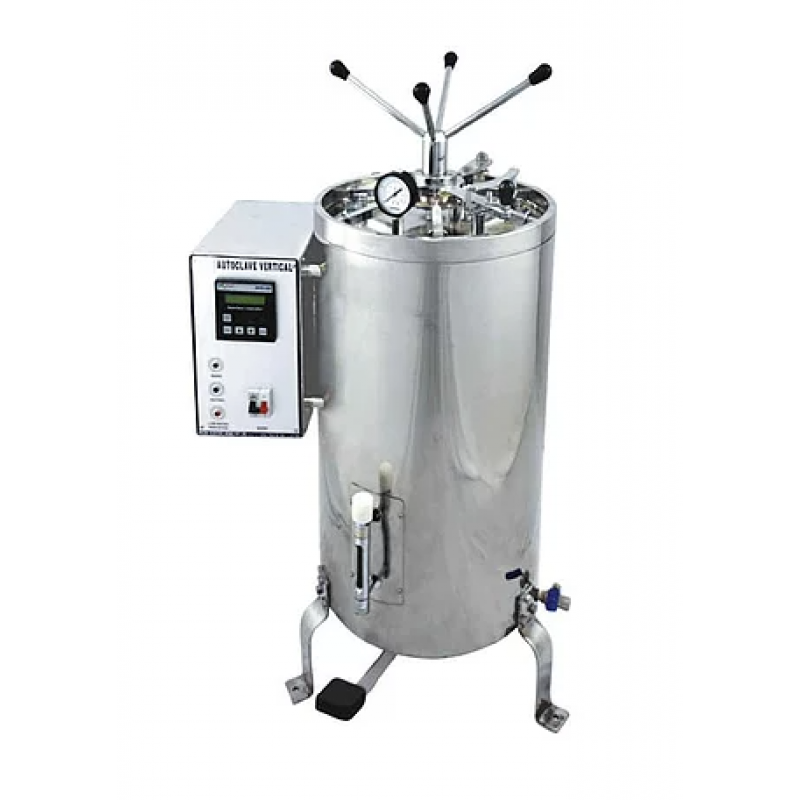

Vertical Autoclave
Product Details :
Vertical autoclaves are also known as top loading sterilizers that come in cylindrical shape. These are widely used in hospitals, Operation Theatre (OT), microbiology laboratory for sterilization of various medial and cultures. The working of vertical autoclave is simple to understand; to open, a radial locking mechanism is fitted at top of the lid; a foot lever (pedal) is attached at the bottom. User has to press the pedal and lift the lid.
We make various types of vertical autoclave machines as per intended use. Economy models come with powder coated MS exterior and stainless steel interior. Our Deluxe models are double walled vertical autoclaves and made with inner and exterior both of stainless steel; while the Triple Walled models have another chamber and all three walls are made of thick gauge of stainless steel sheets. We make every vertical steam sterilizer following ASME guidelines in order to ensure that they are safe for users and samples.
Features and Benefits :
- Stainless steel interior
- Digital temperature indicator Digital temperature Controller
- ISI marked flange / immersion heating elements Up to 121°C temperature range
- Silicone rubber gasket
- Automatic pressure control switch Stainless steel basket
- Reliable steam pressure gauges
- Double or triple walled construction Pedal for lid opening
- Water level indicator
- Water inlet & outlet valves
Technical Specifications :
Construction | Economy Model | Double Walled Model | Triple Walled Model |
MOC Exterior | Painted MS sheet | SS 304 (mirror finish) | SS 304 mirror finish) |
No. of walls | Two | Two | Three |
Lid | Polished MS | SS 304 | SS 304 |
Interior | SS 304 with silicon gasket | ||
Working Pressure | 15 to 20 psi | ||
Working Temp. | 121°C to 125°C | ||
Controller | Auto set to 15psi & 121°C | ||
Pressure display | Analogue dial gauge | ||
Timer | Mechanical timer | ||
Hydraulic tested | Hydraulically Tested up to 40 psi (ASME Guideline) | ||
Basket | Stainless steel basket | Stainless steel basket | Not Required |
Power supply | 220 Volts 50Hz | ||
Standard Fittings | Low water indicator; Automatic pressure switch; Pedal lifting device Steam release valve; Water outlet valve; Spring loaded safety valve Power cable with three pin top | ||
Optional Accessories | Fully stainless steel construction (GMP) Up to 134°C temperature range PID temperature controller cum timer with alarm (buzzer) PLC with HMI interface with data logging 21 CFR Part 11 software Thermal Printer Lower water cut-off |
STANDARD SIZES / DIMENSIONS :
Ordering Information | Dia. x Height | Volume | Watt | |
IG-22VA | 250 mm x 450 mm | 22 liters | 1 KW |
|
IG-35VA | 300 mm x 500 mm | 35 liters | 2 KW | |
IG-50VA | 350 mm x 550 mm | 50 liters | 3 kw | |
IG-75VA | 400 mm x 600 mm | 75 liters | 4 kw | |
IG-95VA | 450 mm x 600 mm | 95 liters |
|
