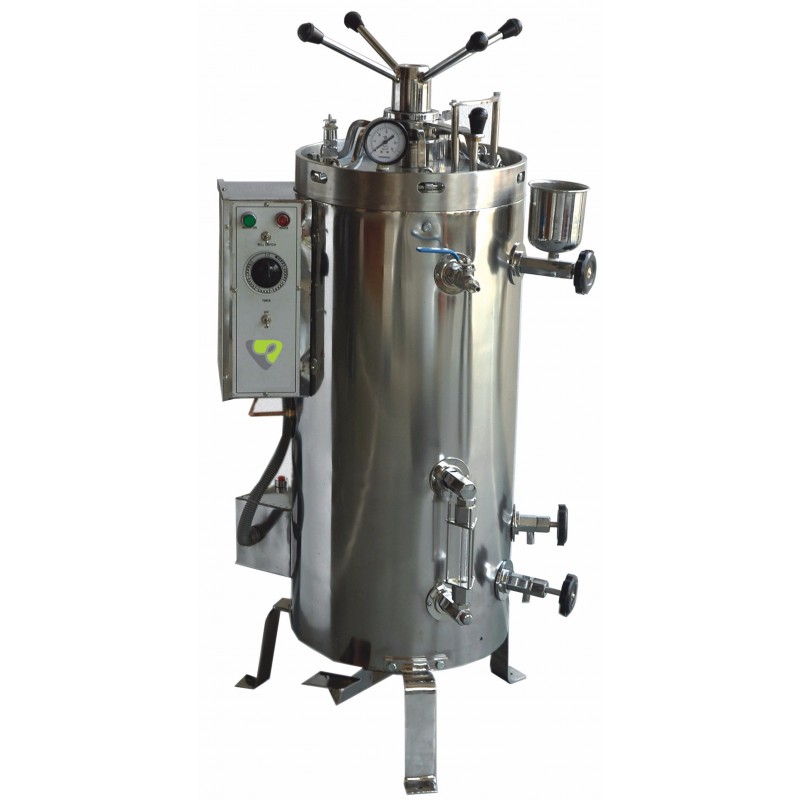

Our Microprocessor based vertical autoclaves are double/ triple walled units. Outer body of our autoclave is constructed out of thick gauge stainless steel sheet of SS-304 grade. The inner chamber is also made of heavy gauge stainless steel sheet of SS-304 grade. The middle wall is also constructed from the strong and sturdy stainless steel sheet of ss-304 grade s stainless steel sheet.

Features

• Inner and outer made of Stainless Steel.

• Supporting Ring & Legs are made up of Stainless Steel.

• Heater cover with stand.

• Bucket are made of Stainless Steel Sheet.

• Lid is made of thick machined Stainless Steel plate lined with Stainless Steel from inside.

• Lid is fitted with Pressure Gauge, Spring Loaded Safety Valve, Manual

• Exhaust Valve, and water level indicator.

• Drain Valve facilitate easy cleaning of the chamber.

• Fitted with silicon rubber gasket.

• All internal joints are argon arc welded.

• Pressure Control Switch and Low Water Level Cut-Off system for general safety of the element.

• Operating range from 15psi to 22psi pressure.

• To work on 220/230Volts, 50/60Hz AC supply.


Available sizes

SIZE OF INNER CHAMBER DIA X DEPTH LOAD

250X450 MM 22 LITRES 2.00 KW

300X500 MM 40 LITRE         3.00 KW

350X550 MM 50 LITRES 3.00 KW

400X600 MM 78 LITRES 4.00 KW

550X750 MM 250 LITRES 6.00 KW

EXTRA FOR DIGITAL TIMER

EXTRA FOR AUTOMATIC WATER CONTROL
