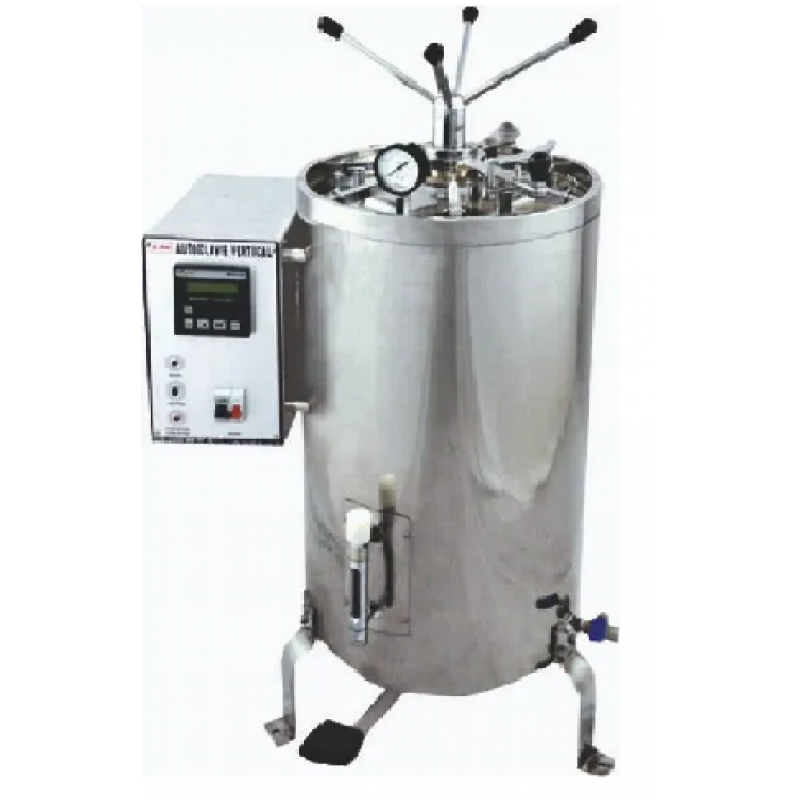

VERTICAL AUTOCLAVE
Product Details :
Vertical autoclaves are also known as top loading sterilizers that come in cylindrical shape. These systems are designed for meeting effective sterilization requirements in bacteriological and research laboratories, hospitals and clinics and food and beverage units. The working of vertical autoclave is simple to understand; to open, a radial locking mechanism is fitted at top of the lid; a foot lever (pedal) is attached at the bottom. User has to press the pedal and lift the lid.
Zenotrex vertical type autoclaves deliver flexible solutions of steam sterilization in hospitals, clinics and other areas of application, where reliable steam sterilization is a mandatory process. Vertically designed chamber provides guaranty of safe and efficient sterilization even in confined spaces. In order to suit specific application, these units are fabricated as fully GMP stainless steel double and triple walled construction; in addition, we also manufacture vertical autoclaves with other configurations, which include stainless steel inner and exterior made of Mild Steel (MS).
Features:
Tank volume 20 to 175 liters | Equipped with joint less silicon rubber gasket |
Provided with immersion type heater | Double, triple wall & steam storage GMP construction |
Comply with NABL standards | Radial or wing nut type door locking |
Easy operation and low maintenance | Water level indicator |
IQ/ OQ / PQ Documentation | Digital temperature indicator |
Specifications:
Internal Tank Capacity | 22 Liter | 40 Liter | 50 Liter | 78 Liter | 95 Liter | 175 Liter |
Chamber dimension | 250x450mm | 300x500mm | 350x550mm | 400x600mm | 450x600mm | 550x750mm |
Load | 2.00 KW | 3.00 KW | 3.00 KW | 4.00 KW | 4.00 KW | 6.00 KW |
Working Pressure | 1.2 kgf/cm sq.g (15 psi – 17 psi) (Can be Upgraded up to 30 PSI) | |||||
Sterilizing Temperature | 121°C (134°C – Optional) | |||||
Heat Average | <=±1°C | |||||
Sterilization Time | 25 to 30 Minutes | |||||
Digital Timer | 0 to 99 min | |||||
Construction | Double / Triple wall & Steam Storage with GMP construction | |||||
Outer Chamber | Mild Steel (304 stainless Steel – Optional) | |||||
Inner Chamber | 304 SS (316 / 316L grades Stainless Steel – Optional) | |||||
Insulation | Glass Wool | |||||
Waste Container | Stainless Steel | |||||
Door / Lid | Foot lifted with safety and interlock device | |||||
Door Locking type | Radial Type /Wing Nut | |||||
Water Filling & Removal | Manual | |||||
Safety Features | Radial locking, safety valve, low water detector and pressure interlock | |||||
accessories | – PID controller | |||||
Power Supply | 220 Volts / 440 Volts | |||||
Option:
PLC |
Digital |
Thermal |
Vacuum |
