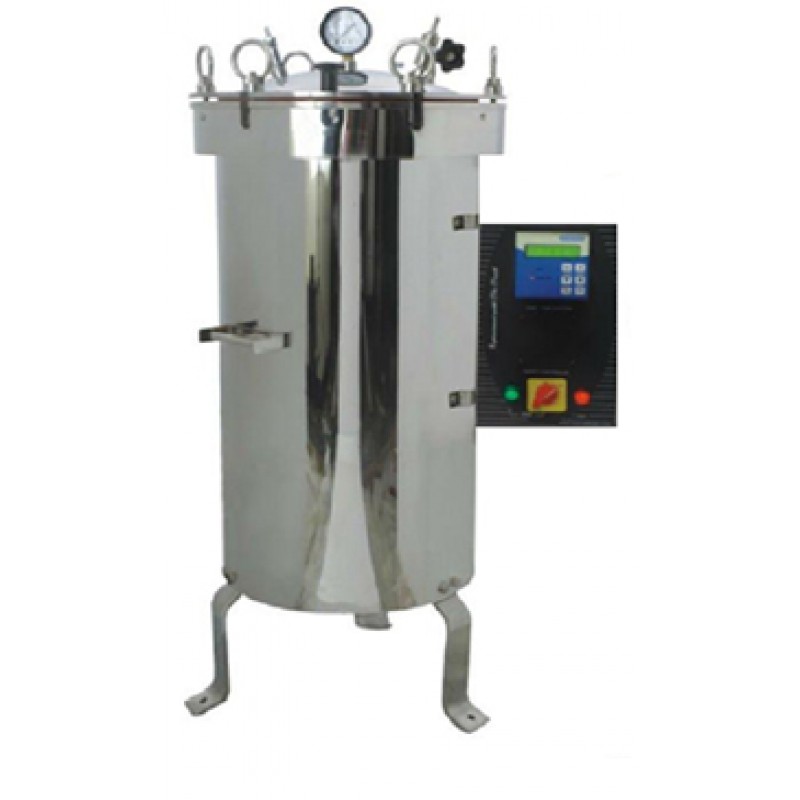

VERTICAL AUTOCLAVE
Product Details :
Size (in)(dia x ht) | Size (cm)(dia x ht) | Sterilisation Volume (ltrs) |
12 x 16 | 30 x 40 | 30 |
14 x 22 | 35 x 55 | 52 |
16 x 24 | 40 x 60 | 75 |
18 x 24 | 45 x 60 | 95 |
Body | Inner: 18 Gauge Stainless Steel (SS 304). |
Door | Hinged door with SS lining. |
Locking System | Fly Nuts/wings locking system. |
Safety | Spring loaded safety valve in both the chambers. |
Temperature Display | Seven segment digital LED. |
Timer | Available |
Pressure Display | Dial type pressure Gauge. |
Heating Capacity | 3 kw |
Pressure Control | 10-20 PSI, adjustable pressure controller |
Accuracy | +/- 3 PSI |
Temperature Sensor | Solid state RTD (Pt-100). |
Auto Cut off | System cuts off power after a set pressure point has reached OR switches on power if the actual pressure drops below the set point. |
Power | 230 V +/- 10%, 50 Hz, Single phase. |
Accessories | Spanner, Spare fuses and 3mtrs,Power chord with 3-pin, 15amps plug |
