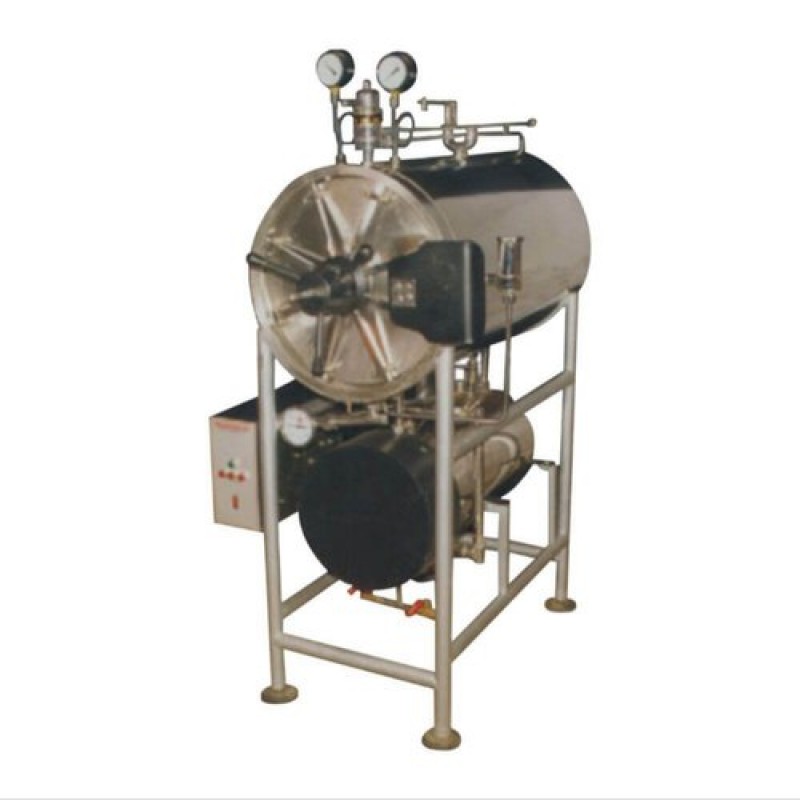

Triple Walled Horizontal Autoclave
Product Details :
| Insulation Wall | Triple Wall |
| Automation Grade | Fully Automatic |
| Shape | Horizontal |
| Chamber Volume | 40 L, Also available in 78 L, 180 L, 235 L |
| Model Number | RA-103 |
| Material | Stainless Steel |
| Voltage | 440 V |
| Size | 300x500 mm, Also available in 400x600 mm, 500x900 mm, 500x1200 mm |
| Phase | Three Phase |
Our presented series of Triple Walled Horizontal Autoclave is enormously demanded in the market for their long-lasting nature and superior finish.
Specifications:
- Inner Chamber is made of Stainless Steel,
- Outer is made of mild steel/stainless steel,
- Boiler made of stainless steel,
- Three way valve for sterilization cycle,
- Pressure adjustable between 5 psi to 20 psi, and controlled by automatic pressure control switch,
- Microprocessor PID and Timer, Vacuum Breaker and steam trap,
- Water level Indicator
- Temperature Gauge, pressure release valve, safety valve,
- The whole unit is mounted on a robust tubular stand made of MS duly painted with attractive stove enamel.
