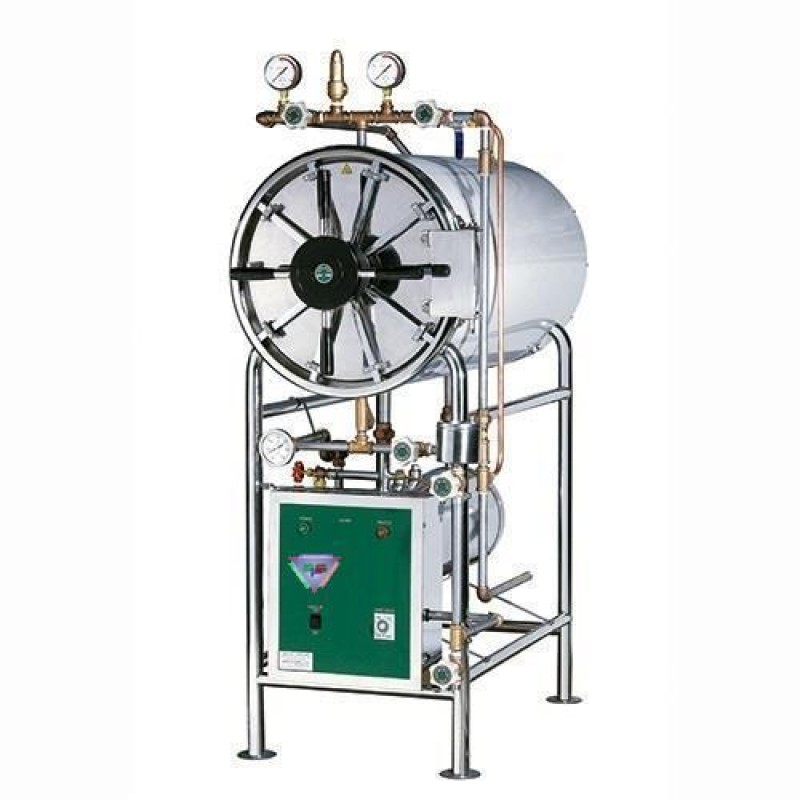

Triple Walled Cylindrical Horizontal Autoclave

Product Details:

Material	Stainless Steel
Brand	APS Laps
Pressure	5 psi to 20 psi
Voltage	220/230 v

Construction:

Triple walled construction inner chamber is made of high grade stainless steel sheet of SS-304 grade. The outer body is also made of thick stainless steel sheet. The boiler is made of S. Steel. The lid is made of thick steel sheet plate. The unit is duly fitted with highly efficient M.S. Painted Ring & radial locking system duly chrome plated. A three way valve or a multi port Valve made of stainless steel is installed for controlling the sterilization cycle. The pressure is adjustable from 5 psi to 20 psi; pressure is controlled by automatic pressure control switch. Fitted with water level indicator and vacuum breaker. The unit is fitted with temperature gauge, vacuum breaker and steam trap. The whole unit is mounted on a robust tubular stand made of MS duly painted with attractive stove enamel.

Specification:

Dimensions	Price (INR)
400 x 600 mm (16X24)	428750
400 x 1100 mm(16X44)	500500
500 x 900 mm (20X36)	557500
500 x 1200 mm (20X48)	660000
Optional Accessories:
Automatic Indfoss Piezostat	8750
Automatic low water level cut-off device	5500

Additional Information:

• Item Code: APS-102
