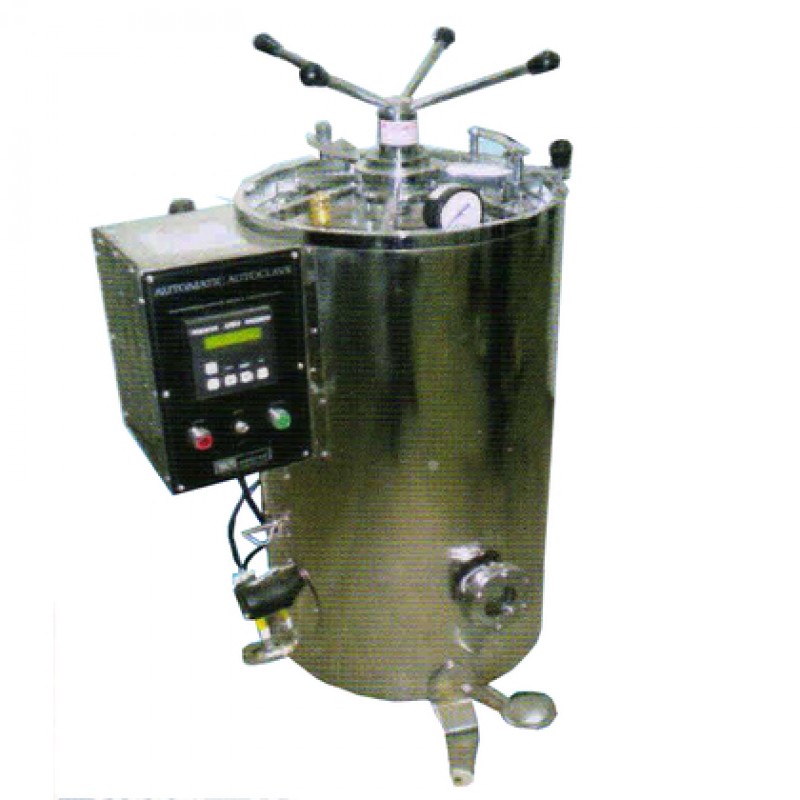

Triple Wall Vertical Autoclave Model - ZA-10D
Product Details :
The unit comprises of steam jacket electricity heated, inner chamber & lid made of stainless steel, works on phase V A/C 50 Hz supply fitted with automatic pressure control switch safety valve etc.
CHAMBER
- The chamber is made of heavy gauge stainless steel, fitted with stainless steel lid with radial locking system , chamber is fitted with two safety valve of stainless steel, pressure gauge, water outlet valve and Air inlet valve, stainless steel eject valve.
- Triple wall construction, all three wall inner, jacket, outer are made of stainless steel 304, with S.S Basket.
- RADIAL LOCKING SYSTEM (chrome plated) and paddle lifting, with water level arrangement.
- Lid made of Stainless Steel Plate
- Provided with built - in safety valve, pressure gauge, pressure release valve. With Automatic Pressure switch, pressure is adjustable form 5 to 20 psi 11 psi. Suitable to operated on 220v, single phase AC supply.
INNER SIZE :
DIA (MM) | 250 | 300 | 350 | 450 | 550 |
DEPTH (MM) | 450 | 500 | 500 | 650 | 700 |
OPTIONAL
- Automatic Low water Level cut off
- Digital temp. Indicator
- Dial Type Analogue Temp. Gauge
- Mechanical Timer O-60 min.
- Digital Automatic Temp. Controller and Digital Timer (to sterilize the samples for set time after Temp. is achieved)
