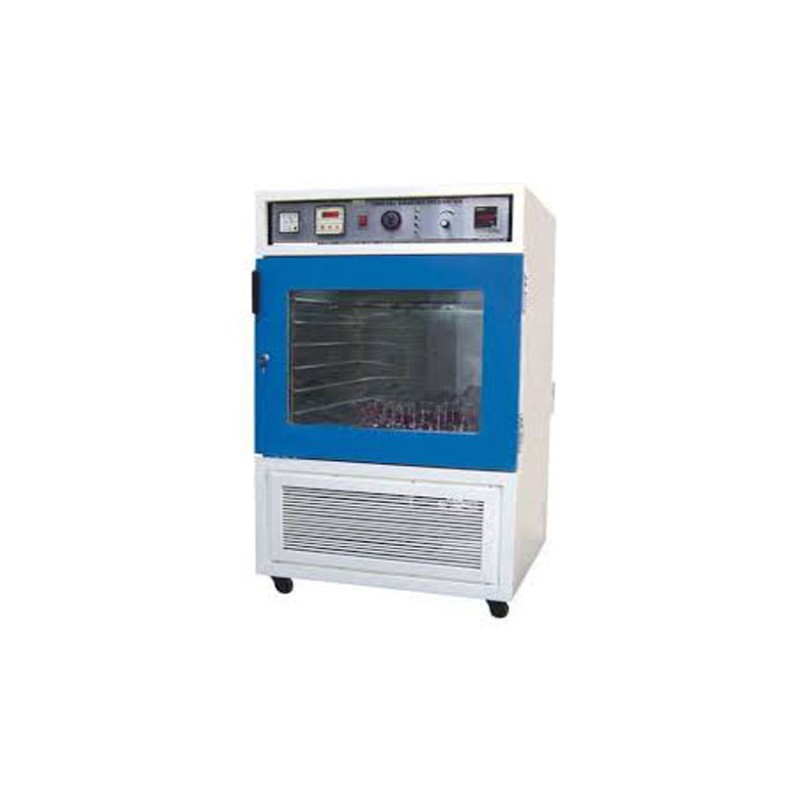

Refrigerated Orbital incubator shaker

Product Details:
Our company manufactures and supplies Orbital Shakers Incubators catering to customers’ varied requirements. These Orbital Shakers are made of world class raw material and tested under the guidance of specialists.

Salient Features

• Inner chamber made of stainless steel SS-304 and outer chamber made of mild steel duly powder coated (Optional : Inner SS 316 & outer SS 304)
• PUF thick insulation to ensure temperature stability & reduced energy consumption

• Easy-to-read digital display
• Wide range of platforms options for culture flasks, flasks etc. (Sold separately)

• Air heaters made of high grade Kanthal A-1 wires
• The cooling is done by a hermetically sealed CFC FREE eco friendly compressor.

• Air circulating fan for temperature uniformity inside the chamber
• Shaking with the help of DC Drive & Brush less motor having Eccentric pulley mechanism.

• 30-220RPM shaking speed range
• 25 mm orbital action

• SS / Fiber clamps having spring tension for holding flask
• 0-999 minutes timer or continuous running operation
• Independent  digital displays for shaking speed (RPM) and timer

• Audio visual alarm when the temperature and RPM deviates from the set Value
• Fluorescent lamp illumination

• Door having a glass / acrylic peeking window which  allows inspection of samples without disturbing the temperature of cabinet.

Specification

Description	SAII-OIS-9C	SAII-OIS-16C	SAII-OIS-25C	SAII-OIS-36C
Maximum load	4	9	16	20
Shaking plate dimension	12” x 12”	18” x 18”	24” x 24”	30” x 30”
Speed range	30 – 220 RPM
Temp range and accuracy	+5°C to 80°C ± 1°C
Timer	0 – 999 minutes or continuous
Max humidity	80%
Shaking amplitude	25 mm
Flask capacity (user can choose any 1 flask capacity)	250ml x 9 flasks / 500ml x 4 flasks / 1000ml x 4 flasks	250ml x 16 flasks / 500ml x 9 flasks / 1000ml x 9 flasks	250ml x 25 flasks / 500ml x 20 flasks / 1000ml x 16 flasks	250ml x 49 flasks / 500ml x 36 flasks / 1000ml x 25 flasks
Overall dimension	60 x 60 x 90	75 x 75 x 100	80 x 80 x 110	90 x 90 x 120
Weight	90	110	125	140

Optional

• Circular chart temperature recorder
• Software to interface incubator shaker directly to computer for storing data & print
• PLC controlled equipment with touch screen colour display HMI (fully programmable system)
• MOC Outer body – SS
• MOC inner body – SS 316
• Inbuilt voltage stabilizer for high voltage protection
• High orbital shaking speed up to 400 RPM
