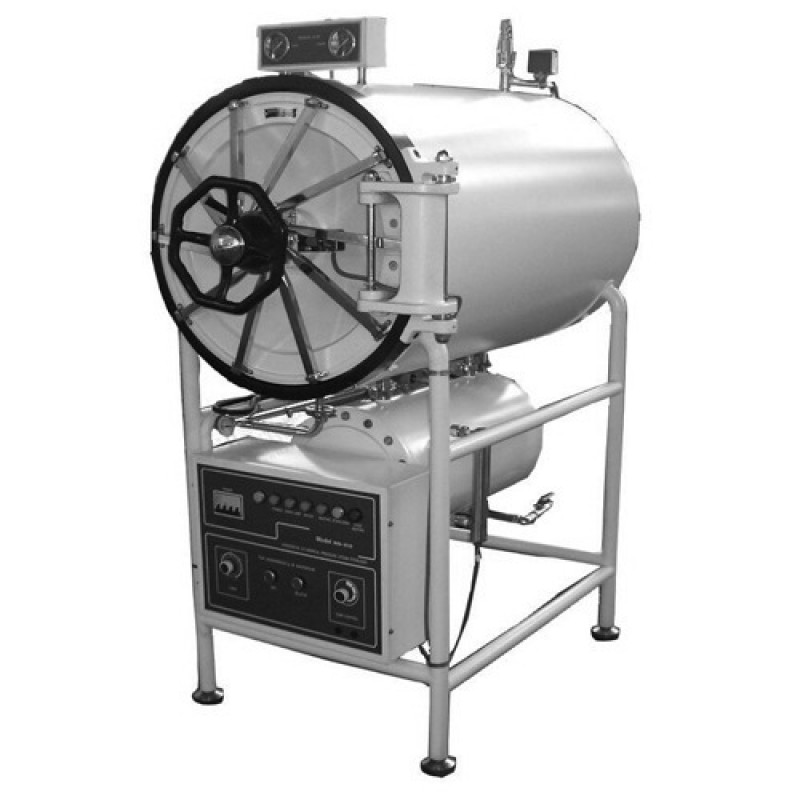

Horizontal Sterilizer

Product Details :

We are offering Horizontal Sterilizer.

Specification:

• Fully automatic by means of plc base controls, which operate pneumatically actuated solenoid valves. Provision of four different cycles and program
• Standard cycle operating pressure -1 bar to 4 bar
• Heat up faster hold (121oc) - exhaust
• Heat up faster hold (134°c)- exhaust
• The technique uses the method of gravity air removal to ensure uniforms steam distribution and penetration
• Steam trap equipped with air vent ensure maximum air removal. Useful for sterilization of glass containers i.e Ampoules, vials, glass bottles etc. It is also useful for sterilization of glass wares, utensils, vessels, instruments, rubber articles linen etc
• Hp the cycle 3 prester vacuum pulses-heat up-star hold- exhaust-post star-vacuum pulsing for drying. This technique uses near 100% air removal from sterilization clamber v, which results in better temperature uniformity in the chamber because of the absence of air pockets i.e. Cold spots. This technique increases the penetration of steam in porous products from which removal of air is difficult
• Vacuum drying at the end of sterilizing hold period ensures drying of the material which has been sterilized it is useful for vials and eye drops entering the class I area and processing drums, garments, fabrics, drying rubbers stoppers vessels machine parts, liquids in bottles and PVC pouches etc
• Leak test cycle for periodic testing of door integrity and pipeline connections & detecting leakage ampules
• Another hp-hr cycle with post vacuum pulses can be provided if required for special purpose
