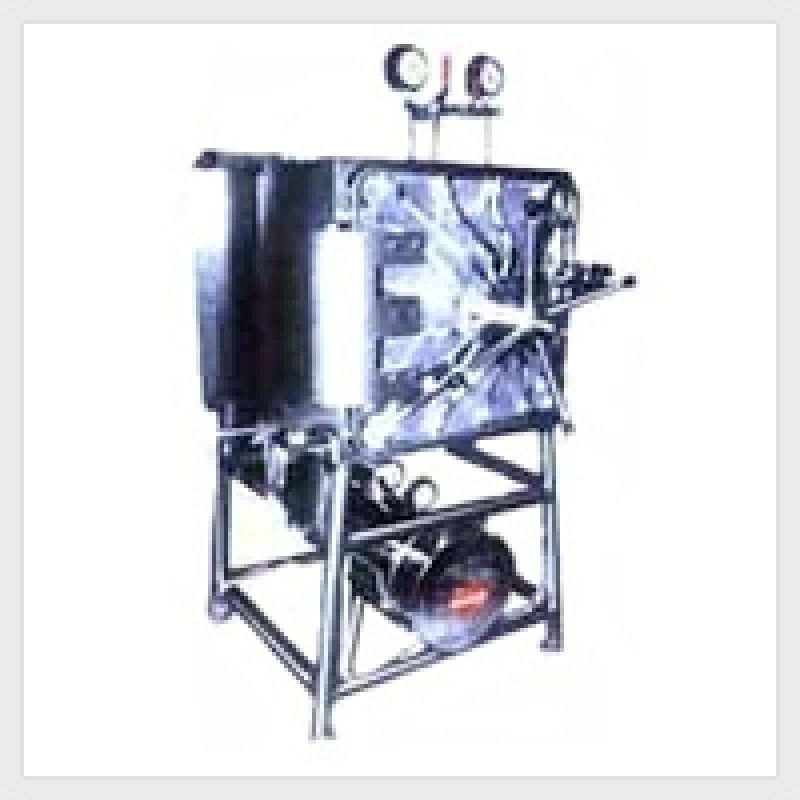

Horizontal Rectangular High Pressure Unit
Product Details :
Our clients can avail from us Horizontal Rectangular High Pressure unit. This unit has an inner chamber, lid, jacket and boiler and all these are made of premium quality stainless steel. Its outer chamber is made of thick gauge mild steel. A three way valve or a multiport valve that is also made of S.S. is also provided in order to control the sterilization cycle.
Provided With:
It is provided with complete unit parts:
- Vacuum breaker
- Water level indicator
- Steam trap
- Automatic pressure control switch
The complete unit is mounted on a rugged tubular stand. It is also available in various standard sizes and is operatable on 3 phase, 440 volts A.C. Supply.
Pressure Control:
The pressure control device is especially incorporated in all the electrically operated sterilizer. It also helps in saving the consumption of power and also reduces the continuous opening steam release value. Further, it also prevents the release of the steam in room.
Operating Temp. & Pressure:
Sterilizing Temperature | Sterilizing Pressure | Power |
120ºC | 1.2 o 1.5 Kg/cm2 (15 psi- 20 psi) | Suitable to operate on 440V, 3ph, 50 Hz, Ac
Supply |
Available in following capacities :
Dia | x | Depth | Load |
600 mm | x | 600mm | 1200 mm |
600 mm | x | 900mm | 1500 mm |
Horizontal Rectangular High Pressure Unit
