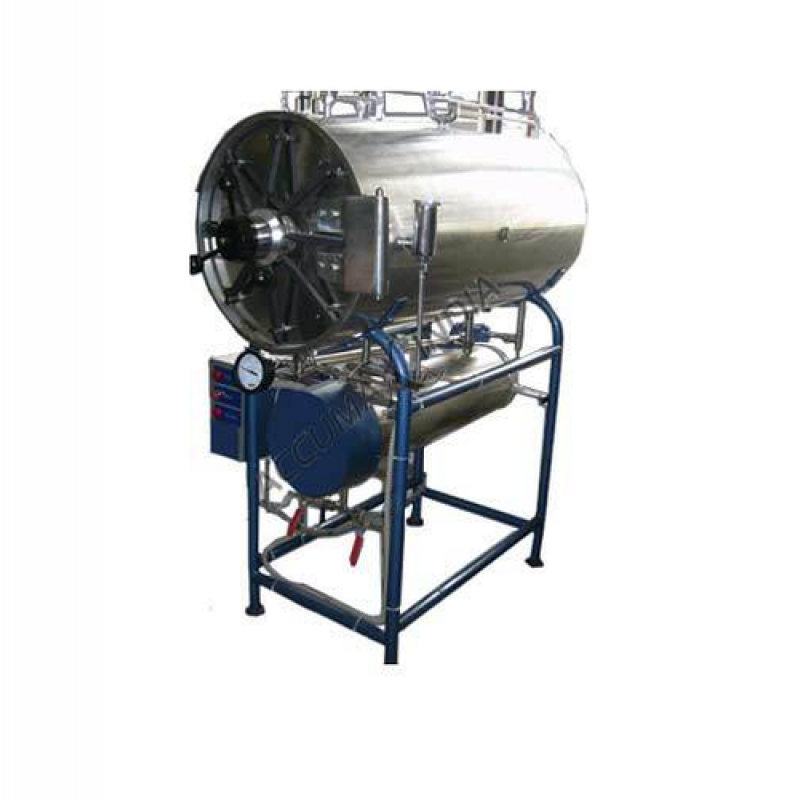

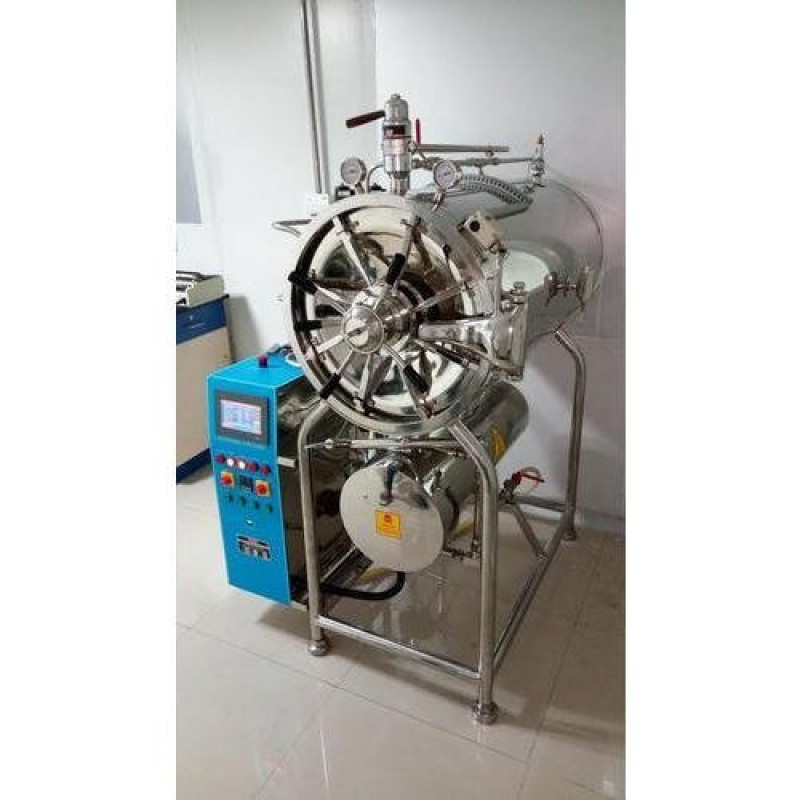

Horizontal Rectangular Autoclave
Product Details :
| Usage/Application | Hospital, Laboratory and Industrial |
| Insulation Wall | Single Wall |
| Power Consumption | All Size |
| Automation Grade | Fully Automatic |
| Working Pressure | 1.26 kgf/cm.sq |
| Working Temperature | 121Oc/134C |
As a quality focused firm, we are engaged in offering a high quality range of Cylindrical Steam Sterilizer.
Features:
- Maintenance free
- Contact parts : S.S.304 / 316 Quality.
- In case of GMP complete S.S (Material of construction )
- Models are available in Semi Automatic as well as Fully Automatic Touch Screen PLC
- Online validation option
- Double door, flush mounting with door interlocking systems
Safety Devices:
- Pressure switch,Safety valves and self locking of door when chamber is under pressure
- Vacuum Breaker for jacket
- Steam Generator with gauge glass valves and low water protection
Specifications:
- Working Pressure : 1.26 kgf/cm.Sq
- Working temperature : 121Oc / 134OC
- Mode of heating : Electrically heated by water immersion heaters
Standard Fitting:
- Multi operating valve, Quick drying apparatus, Accidental vacuum breaker valve, Plug screen, Ejector system, Chamber condensate line with steam trap & check valve, Safety valve, Air valve, Vacuum breaker, Pressure gauge, Compound gauge, Dial thermometer, Baffle, Stainless Steel perforated tray etc.
Sizes:
| Volume | Chamber Dimensions (MM) | Electric Load | |
| Ltr approx | Diameter | Depth | KW |
| 75 | 400 | 600 | 6 |
| 100 | 400 | 900 | 9 |
| 150 | 400 | 1200 | 9 |
| 175 | 500 | 900 | 9 |
| 225 | 500 | 1200 | 12 |
| 500 | 750 | 1200 | 18 |
