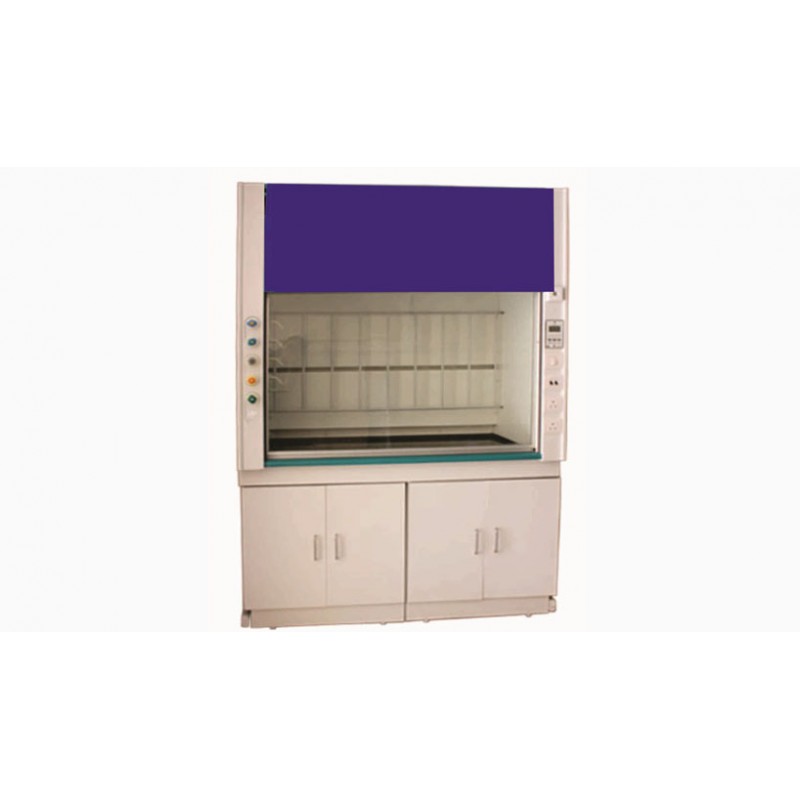

Fume Hood

Product Details;
Spire Automation & Innovation offers Fume Hood in number of sizes and range depending on your needs. Fume Hoods are recommended for exhaust from the hood working area, of gases, vapor, toxic particles, odor to improve working environment of people who regularly handle toxic substances. These reduce personal exposures and odor level in the laboratory. These are designed to exhaust toxic, or otherwise harmful vapors etc., for protecting laboratory personnel & equipments. A motor-blower exhaust system generates negative pressure within the hood, extracting the contaminated air from the work area and expelling it into the atmosphere and preventing the fumes from escaping into the room. These are recommended for various laboratories like Bio-Chemistry, Pharmaceutical units, printed circuit etching/cleaning etc. These are capable or handling corrosive fumes of sulphuric and hydrochloric acids etc. If work-area walls are lead-lined (Optional), it can be effectively used for Radio-Isotopic applications.

Construction
The outer body of fume hood is made of wooden / mild steel. The work surface (Worktable) is of stainless steel sheet. A small S.S. Sink, water tap and water outlet provided. A sliding door made of acrylic moves vertically up/down with counter balanced weight operated by steel rope. Hose is provided with fluorescent light for easy working in the chamber and a storage cabinet is also provided for storing of material. A metal clad socket and gas cock is also provided in the chamber. The control panel is fitted with on/off toggle switches for mains, motor-blower and tube light and mains indicator.
Power Supply 220V, Single Phase, 50 Cycles, AC

Model	Size (feet)
SAII-FH-010	2’ x 2’ x 2’
SAII-FH-011	3’ x 2’ x 2’
SAII-FH-012	4’ x 2’ x 2’
SAII-FH-013	5’ x 2’ x 2’
SAII-FH-014	6’ x 2’ x 2’

Optional

• Complete exhaust system suitable for 10′ duct and installation.

• Fume Duct – PVC

• Lead-Lining on work-area walls for radio – isotope application.

• Acid resistance ceramic- tiles work surface (Work Table)
