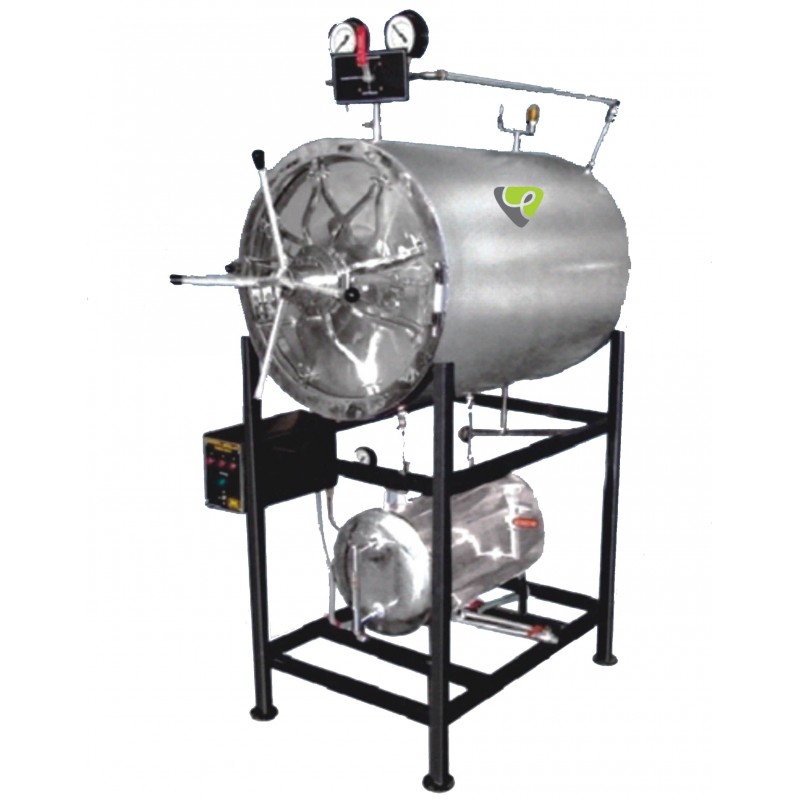

Our horizontal autoclaves are widely used in various bulk laboratories for their day to day studies on scale sterilization procedures where they give dryness of the sterilized medium a paramount importance and for that our sterilized media is prone to various micro-bacterial and viral infections. Having a specialization in customers’ requirements we have an expert team of making both standard and customized models

Features

• Fully Automatic Programmable

• Temp. Range 120°to 138°C. Time 00 To 59 Mins. (or As Per Custom Specs)

• 2 Line CLCD For Display of Messages And Faults.

• Fully Stainless Steel Double / Triple Walled With Chamber And Jacket of SS 304 / SS 316 And Ceramic wool Insulation In-Between.

• SS 304 Boiler Tank

• M.S. Powder Coated Tubular Stand & Controller Housing

• Vacuum Breaker, Pressure Gauge And Spring Loaded Safety Valve.

• Condensate Line

• “S” or “B” CLASS, Single or Multi Program(s), Power Failure Memory. Self Diagnostic Software. Password Protection & Reporting.


INNER CHAMBER SIZE CAPACITY LOAD

450 X 600 MM 78 LITERS 18.00 KW

400 X 1100 MM 138 LITERS 12.00 KW

500 X 900 MM 165 LITERS 12.00 KW

500 X 1200 MM 220 LITERS 12.00 KW
