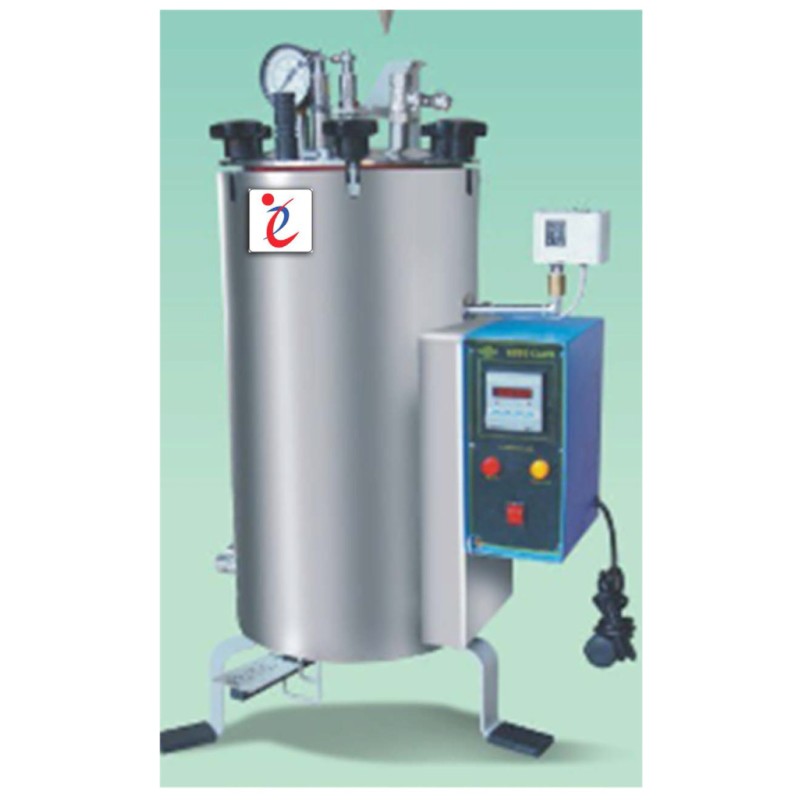

Autoclave Vertical
Product Details :
Double-wall construction with inner S.S. 304. all these sheets are argon welded & the outer chamber is made of high-quality S.S. 304/M. S sheet duly powder coated. Electrically heated by means of I.S.I. quality immersion heaters with working pressure 15 PSI. Hydraulically dye pressed Lid from S.S. Plate with. easy pedal lifting device. having pressure gauge. two Nos. safety valve. quick release coupling and handle with heater cover stand. Water level arrangement cut oft buzzer system and S.S. perforated basket supplied along with a unit on free of cost.
Description :
| Model No | Dia x Depth | Volume | Rating |
| EAUC-A1 | 250 x 450MM | 22 Ltrs | 1.5KW |
| EAUC-A2 | 300 x 500mm | 35 Ltrs | 2.0KW |
| EAUC-A3 | 350 x 550mm | 53 Ltrs | 3.0KW |
| EAUC-A4 | 400 x 600mm | 90 Ltrs | 4.0KW |
| EAUC-A5 | 550 x 750mm | 175Ltr | 6.0KW |
Inner & Outer S.S
| Model No | Dia x Depth | Volume | Rating |
| EAUC-S1 | 250 x 450MM | 22 Ltrs | 1.5KW |
| EAUC-S2 | 300 x 500mm | 35 Ltrs | 2.0KW |
| EAUC-S3 | 350 x 550mm | 53 Ltrs | 3.0KW |
| EAUC-S4 | 400 x 600mm | 90 Ltrs | 4.0KW |
| EAUC-S5 | 550 x 750mm | 175 Ltrs | 6.0KW |
OPTIONAL
- Digital Temperature controller cum indicator (instead of Energy Regulator)
- Digital Timer
- Auto Pressure cut off system
- Auto Vacuum Breaker
- Auto Purging & Exhaust (Solenoid Valve)
- Water level glass indicator
