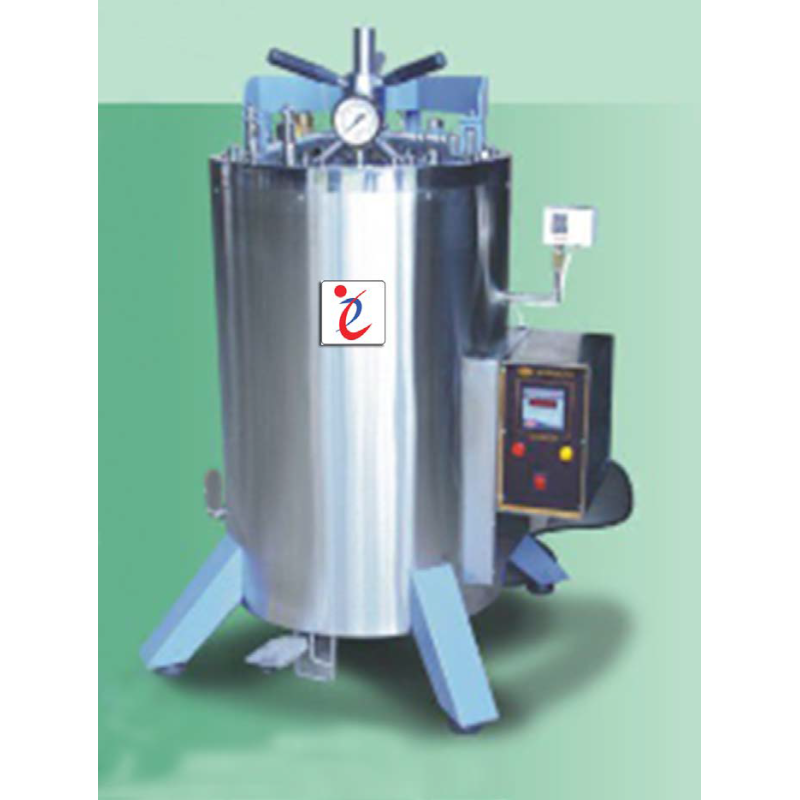

Autoclave Triple Walled Vertical
Product Details :
With Radial Locking System Autoclave
Dry-type vertical triple-walled construction. all the walls are made of thick high-grade stainless Vertical steel sheet of SS-304 grade. The lid is made of a Stainless-steel lid with a radial locking system and foot paddle lifting device with a silicone gasket. provided with a built-in safety valve, pressure gauge. pressure release valve and water level indicator. The pressure is adjustable from 5 psi with an automatic pressure control Switch. controlled with a microprocessor-based digital controller with timer supplied with stainless steel basket.
Description :
| Model No | Dia x Depth | Rating | Volume |
| EAUT-S1 | 250 x 450MM | 1.5KW | 22Ltr |
| EAUT-S2 | 300 x 500mm | 2.0KW | 35Ltr |
| EAUT-S3 | 350 x 550mm | 3.0KW | 53Ltr |
| EAUT-S4 | 400 x 600mm | 4.0KW | 90Ltr |
| EAUT-S5 | 550 x750mm | 6.0KW | 175Ltr |
OPTIONAL
Lid with Bakelite knobs can be (instead of radial locking system) On request
- Auto Pressure cut off system
- Auto Vacuum Breaker
- Auto Purging & Exhaust (Solenoid Value)
NB: Special size can be fabricated on request
