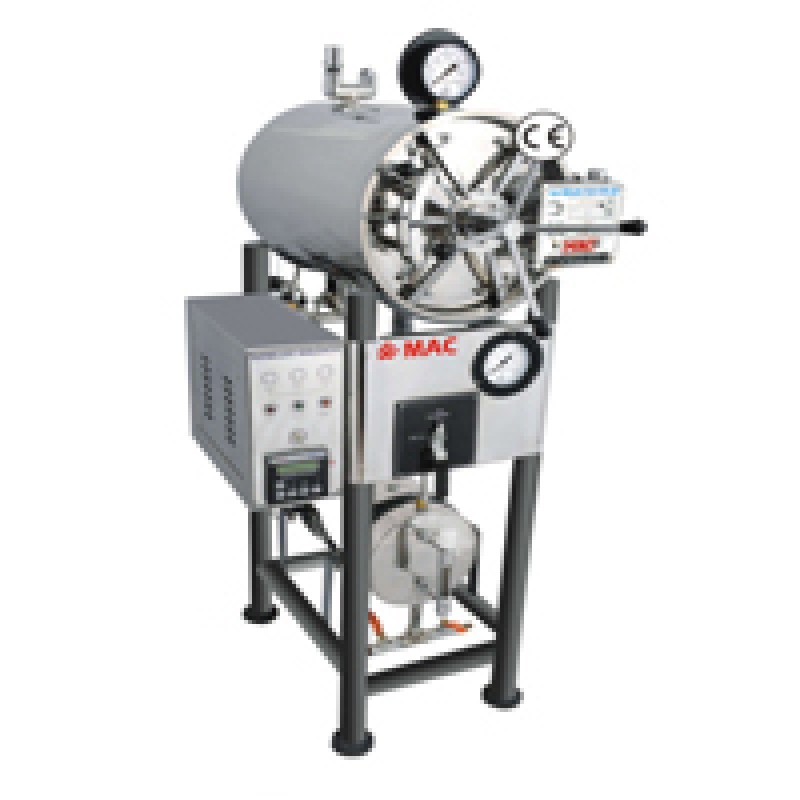

AUTOCLAVE HORIZONTAL (CYLINDRICAL) (REW-103)

Product Details :

• Horizontal Double Walled Autoclaves are most ideal for critical applications requiring assured and reliable total destruction of all living micro-organisms.

• An ideal tool for Laboratories, hospitals, nursing homes, R & D labs etc.

CONSTRUCTIONAL AND SALIENT FEATURES

• Double walled unit horizontally mounted on a sturdy, heavy M.S. duly painted or stainless steel tubular stand.

• Both inner chamber and outer wall made of S.S.

• Pressure is adjustable from 10-20 psi.

• Fitted with pressure gauge, safety valve and steam release valve.

• Available with separate boiler.

• For units fitted with S.S. Boiler, separate valves for injecting the steam into the main chamber and releasing the steam in atmosphere after use are provided.

• Automatic vacuum breaker is provided to break the vacuum in case of formation of vacuum due to steam condensation.

CONTROL PANEL AND SWITCHGEARS

• Automatic Low Water Level Cut-Off Device fitted for general safety of the element.

• Fitted with Automatic Pressure Control Switch.

• Fitted with dial thermometer to indicate the inner chamber temperature.

• Lid is made of thick machined Mild Steel plate lined with stainless steel from inside

• Supplied without jacket (Double walled chamber with separate boiler).

• Industrial grade energy efficient heaters reduce power bills drastically.

Technical Specifications & Ordering Informations,

OPTIONAL

  Digital Temperature Indicator can be supplied in lieu of dial thermometer.
  Microprocessor Based Semi-Automatic Digital Controller with AUTO-TIME CONTROL SYSTEM. After the set temperature is attained the timer starts automatically and on completion of set       count down/up time the supply to heaters is cut-off and the system sounds a buzzer alerting the user that the cycle is over.
  PLC Controller with 32 character (16x2 lines) backlit alphanumeric LCD display with Automatic Digital Minute Timer and alarm for end of cycle. It enables automatic purging of state air,          sterilizing hold time for sterilizing period and cycle and with automatic exhaust of pressure.
  Digital Pressure Indicator displayed directly into the main control panel.
