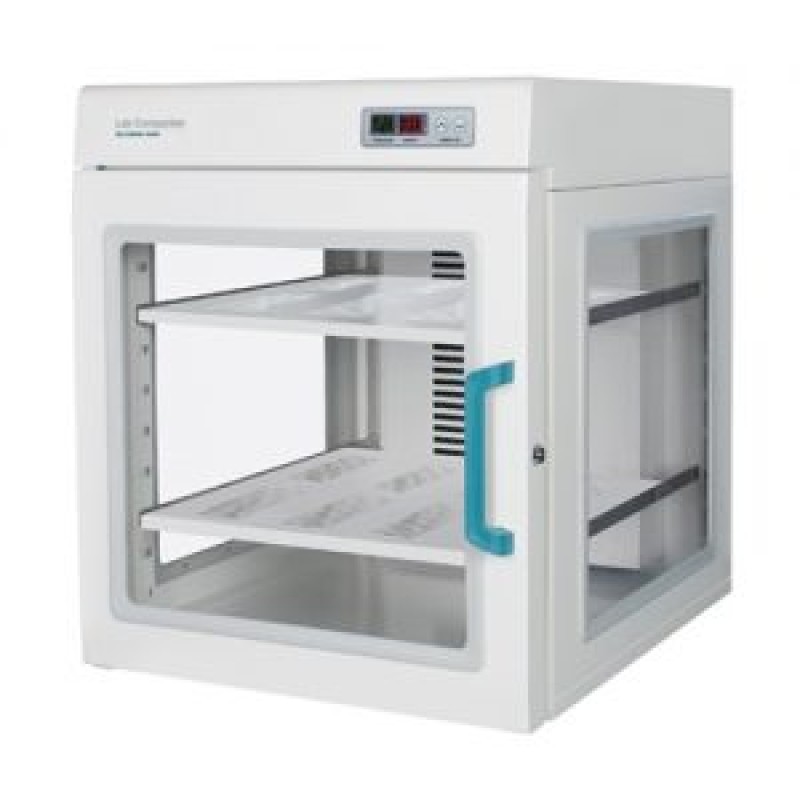

Auto-desiccator Cabinets
Product Features:
- Humidity-sensitive samples are safely stored in our reliable auto-desiccator cabinet
- Suitable for storing various products such as historical document, optical lens and film, electronic components, seeds, all kinds of reference samples
Performance
- Auto-electronic dry unit. Desiccant is not required at all. Interior humidity is automatically controlled by electronic dry unit, highly beneficial for easy maintenance
- Two different humidity ranges. In order to store high humidity-sensitive samples pleasantly, DCL models are strongly recommended .Humidity can be reached down to 1% RH within 8 hours(under Ambient temperature of 25 °C, 60% RH and no load).DC models provide humidity range from 60% RH to 20% RH .Humidity can be reached down to 20% RH within 8 hours (under Ambient temperature of 25 °C, 60% RH and no load)
- Setting humidity by 1% increment is available
Convenience & Safety
- Temperature and humidity display
- Interior temperature and humidity are indicated on display in real time
- *Temp. is only indicated, not for control. Humidity is indicated and also controlled as well
- Easy installation and relocation
- Casters for easy mobility during installation or relocation (for DCL/DC-41)
- Height-adjustable shelves
- High-grade steel with corrosion resistant epoxy power coated surface
- Maximized utilization of internal space by using height-adjustable shelves
- Sturdy heavy load shelves sustain maximum 20kg sample loading
- Clear observation of samples
- Transparent acryl window provides a clear view of samples in the chamber
- DCL/DC-11 has transparent acryl windows on three sides, beneficial for wider view of inside chamber
- Space saving double-stacked cabinets. (for DCL/DC-11, DCL/DC-21S)
- Foot alignment grooves on the top of the cabinet enables stable stacking
- Stackable space-saving design allowing efficient usage of cramped space
- Built in door lock device for safe sample storage
Product Description :
| Model | DCL-11 | DC-11 | DCL-21L | DC-21L | DCL-21S | DC-21S | DCL-41 | DC-41 | ||
| Control range | DCL models; 1 to 10%RH (1% scale), DC models; 20 to 60%RH (1% scale) | |||||||||
| Internal volume (L / cu ft) | 150 / 5.3 | 300 / 10.6 | 300 / 10.6 | 600 / 21.2 | ||||||
| Number of door | 1 | 2 | 2 | 4 | ||||||
| Stackable type | Yes | No | Yes | No | ||||||
| Quantity of shelves (standard/max.) | 2 / 10 | 4 / 19 | 2 / 10 | 4 / 19 | ||||||
| Distance of between shelves (mm / inch) | 32 / 1.3 | 39 / 1.5 | 32 / 1.3 | 39 / 1.5 | ||||||
| Max. load per shelf (kg / lbs) | 20 / 44.1 | |||||||||
| Dimension(W×D×H)(mm / inch) | Interior | 470x499x500/18.5×19.6×19.7 | 470x599x561/18.5×23.6×22.1 (upper) 470x499x561/18.5×19.6×22.1 (lower) | 1070x499x498/42.1×19.6×19.6 | 1070x599x561/42.1×23.6×22.1 (upper) 1070x499x561/42.1×19.6×22.1 (lower) | |||||
| Exterior | 550x700x653/21.7×27.6×25.7 | 547x700x1280/21.5×27.6×50.4 | 1140x700x653/44.9×27.6×25.7 | 1140x700x1140/44.9×27.6×44.9 | ||||||
| Net weight (kg / lbs) | 36 / 79.4 | 56.5 / 124.6 | 58 / 127.9 | 110 / 242.5 | ||||||
| Electrical requirements (230V, 50/60Hz) | 2.0A | 2.0A | 2.0A | 2.0A | ||||||
| Cat. No. | AAHF72115K | AAHF70115K | AAHF72135K | AAHF70215K | AAHF72125K | AAHF71215K | AAHF72145K | AAHF70415K | ||
