Auto Bio Chemistry Analyzer
Product Details:

Brand	VSI
Model Name/Number	Auto Bio-Chemistry Analyzer VSI-901
Parameters	Test Parameters: Up to 300
Power Supply	Voltage: 100-240V AC (Auto Adaption), 50/60 Hz., External Power Adaptor: 19V 4.7 Amp.
Reaction Cuvette	Flow Cell
Storage	2,00,000 Test Results with Editable Patient Information, Storage of Quality Control & Std Results
Test Method	End Point with Standard/Factor, Two Point Kinetics (Fixed Time), Multipoint Kinetics
Weight	6 Kg. Approx. (Instrument)
Analysis Method	Multi standard up to 8 standards, Biochromatic, Dual Wavelength, Absorbance, Coagulation
Flow Cell	Quartz 32 micro-liter, Path Length: 10mm. Removable Cuvette (Square and Round)
Voltage	100-240V AC (Auto Adaption)
Frequency	50/60 Hz.
Resolution	0.0001
Memory Of Tests Results	2,00,000 Test Results with Editable Patient Information
Optical System	Principle: Photometric Analysis with Interference Filter
Absorbance Range	0.0000 - 3.0000
Linearity	+/- 1%
Repeatability	0.001
Spectral Range Selection	Automatic Via Filter Wheel
Wavelengths	340, 405, 450, 505, 546, 578, 630 nm., + 2 Free Positions, +/- 2CML Precision
Light Source	6V 10W Long Life Tungsten Halogen Lamp
Detector	Photodiode
Thermal System	Peltier Regulated 25oC, 30oC, 37oC & Room Temperature, Accuracy: +/- 0.3oC

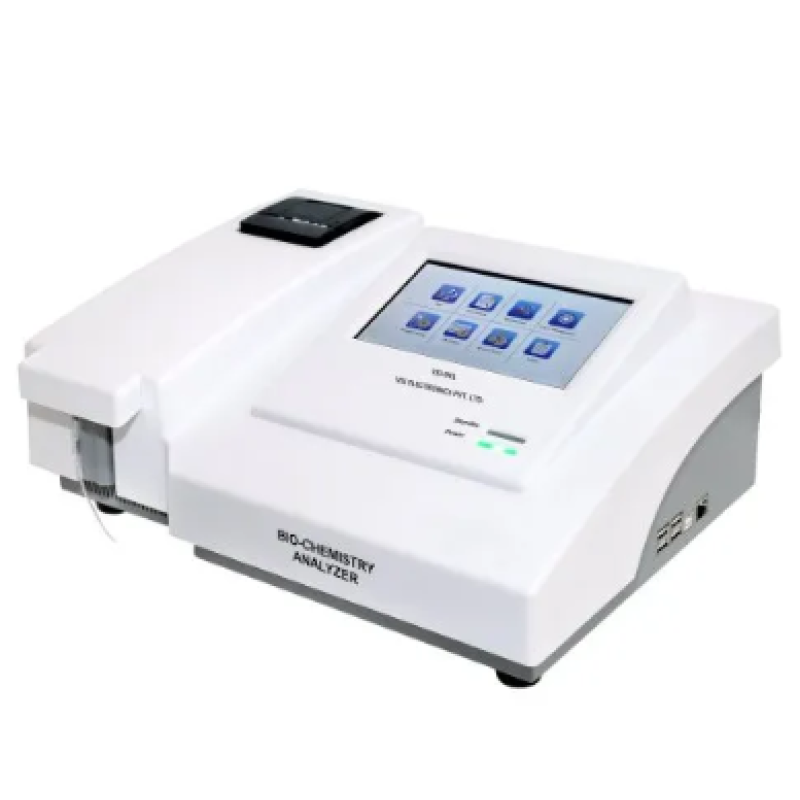

Microprocessor based Auto Bio-Chemistry Analyzer (VSI-901) for End Point, Kinetic, Fix Point, Multi-Standard and coagulation tests, complete with standard accessories.  Quartz flow cell system. It has Built-in Thermal Printer with graphics capability. It has up to 300 test parameters, 240x128 LCD Display. Paltrier Controlled thermostat, open reagent system, user friendly.

SALIENT FEATURES:
·         Highly Stable and Accurate
·         Absorbance Range up to 3.000
·         Range Selection Automatic Via Filter Wheel
·         Inbuilt Thermal Printer
·         Up to 300 Test Parameters
·         Storage of 2,00,000 Test Results with Patient Information

TECHNICAL SPECIFICATIONS:
Test Method: End Point with Standard/Factor, Two Point Kinetics (Fixed Time), Multipoint Kinetics, Multi standard up to 8 standards, Biochromatic, Dual Wavelength, Absorbance, Coagulation
Optical System: Principle: Photometric Analysis with Interference Filter, Absorbance Range: 0.0000 – 3.0000, (Linearity: +/- 1%, Repeatability: 0.001, Resolution: 0.0001), Spectral Range Selection: Automatic Via Filter Wheel, Wavelengths: 340, 405, 450, 505, 546, 578, 630 nm., + 2 Free Positions, +/- 2CML Precision, Light Source: 6V 10W Long Life Tungsten Halogen Lamp, Detector: Photodiode
Thermal System: Peltier Regulated 25oC, 30oC, 37oC & Room Temperature, Accuracy: +/- 0.3oC, Cuvettes : Flow Cell: Quartz 32 µl, Path Length: 10mm. Removable Cuvette (Square and Round)
Printer : Inbuilt Thermal Printer (57mm), Optional External Printer
Display & Input System: 7.0 inch colour touch screen, External Keyboard, Mouse Facility
Suction System  : Pressure Auto Releasing Peristaltic Pump, Suction Volume: 300 µl to 3.0 ml., Air Column facility after each sample to avoid carry over.
Test Parameter : Test Parameters: Up to 300 Storage & CPU  2,00,000 Test Results with Editable Patient Information Storage of Quality Control & Standard Results, DDR2 SDRAM: 1 G Bit, Flash: 256 MB, ARM Cortex A8, 720 Mhz.
Quality Control : Lew-Jennings Chart Using Westgard’s Rule Auto Drawing of QC Figures
Operating Conditions: Temperature: 10oC ~ 37oC, Relative Humidity: <85%,
Power Requirement: Voltage: 100-240V AC (Auto Adaption), Frequency: 50/60 Hz., External Power Adaptor: 19V 4.7 Amp.
