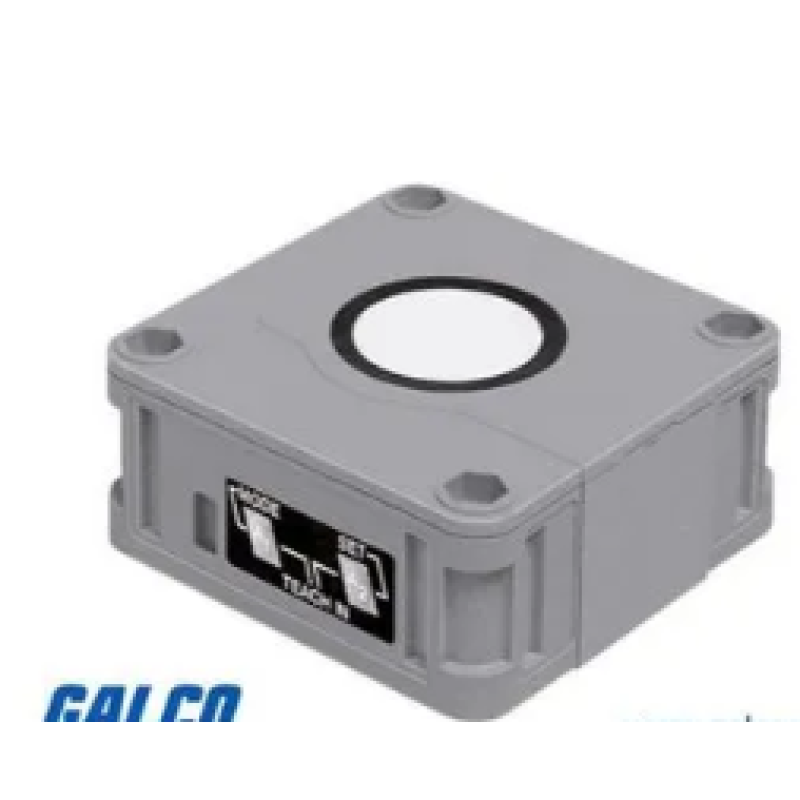

Ultrasonic Sensor
Ultrasonic Sensor
Product Details:
Brand
P&F
Sensing Distance
200 to 4000 mm
Model Name/Number
UB4000-F42-U-V15
Resolution
0.7 mm
Response Delay
Approx. 325 ms
Adjustment range
240 to 4000 mm
Dead band
0 to 200 mm
Standard target plate
100 mm x 100 mm
Transducer frequency
Approx. 85 kHz
LED green
Solid green: Power on
Operating voltage
17 to 30 V
No-load supply current
<60A
Common mode operation
<13Hz
Repeat accuracy
+/-0.1 % of full-scale value
Load impedance
> 1 kOhm
Temperature influence
+/- 1 % of full-scale value
Ambient temperature
-25 to 70 DegC
Connection type
Connector plug M12 x 1 , 5-pin
Degree of protection
IP54
Housing Material
ABS
Mass
150 g
  • Analog output 0 ... 10 V
  • Extremely small unusable area
  • TEACH-IN
  • Interference suppression (adjustable divergence of sound cone in close range)
  • Temperature compensation
  • Synchronization options
  • For Industrial Use Only
