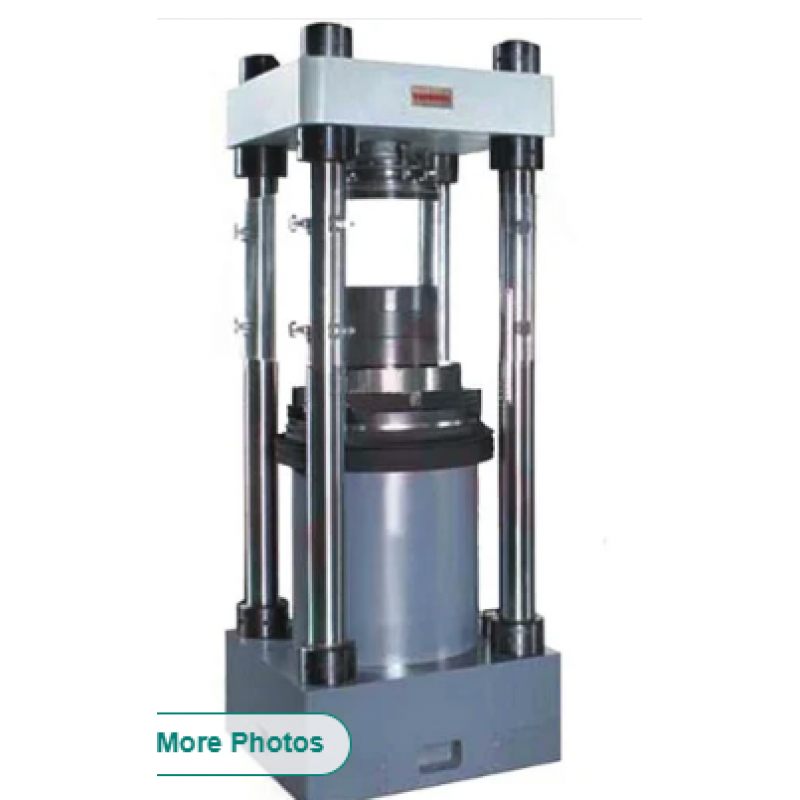

Servo Hydraulic Testing Machines
Product Details:

Power	Eclectic
Material	MS
Phase	Single
Color	Any
Stroke Rating	50 to 100 mm
Deal In	New only
Country of Origin	Made in India

Servo (Dynamic) Hydraulic Testing Machines which are used in a variety of tests like tension compression flexure fatigue (low cycle fatigue / high cycle fatigue / fatigue crack propagation ASTM E647), fracture mechanics (K1c per ASTM E399, J1c, CTOD per ASTM E-1290), damping properties and vibration testing. Our test systems are designed for conducting tests at ambient temperature, elevated temperature (high temperature fatigue characterization) and low temperature. Test speed range slow strain rate testing (typical of corrosion interaction)(1 x 10 -7 /s strain rate) high strain rate testing (flow deformation studies).(150 /s true strain rate) The testing machines are fitted with servo-controlled pumps that come in two versions: hard-wired autonomous control with electronic setting of operating high and low pressure. Operating pressure is set with the convenience of on-screen graphics user interface.
