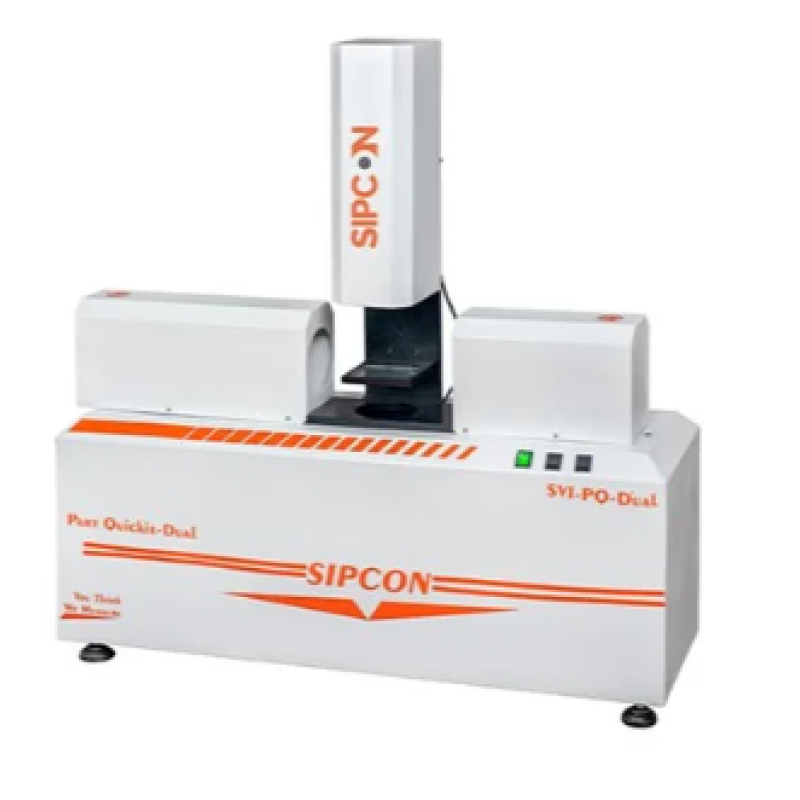

Instant Dimension Measuring Machine
Product Details:
Sipcon introduces the fastest measurement system ever – Part Genie. Now measure any kind of 2D geometry in parts with just one click. This ONE CLICK Instant Measuring Machine is capable of measuring points, lines, circles, angles, distances, pitch, positions, etc. Not only the above measurements but you can measure the various tolerance features like straightness, roundness, concentricity, parallelism, etc. The system comes in 2 versions horizontal and vertical to suit the requirement of the industry.
Salient Features

• 10,000 points per feature for better accuracy and repeatability
• Measurement time less than 3 seconds for 100 features

• No orientation or reference required- 360 ⁰ compensation
• Complete batch report with color coded pass and Fail in Excel or PDF
