Cross Flow Filteration
Product Details:

Filter Type	Suction Filters
Material	Polyester
Usage/Application	Industrial
Color	White
Country of Origin	Made in India
Brand	Bio - Age

cross flow system consists of two modules as below
prefilteration module:-
ss micron filter of 5 micron and 10 microns pore size.
length=10”.
dia- 2. 5”
quantity-1 unit each
ss 316 filter housing for micron filter- quantity 01 no.
length:-10”
dia- 2. 5”. Fitted with ss tc clamps and pressure gauge 1-5 bars.
micro filtration module:-
0. 5 micron ceramic membrane filter with tff principal.
length: - 1200 mm
dia:- 2. 5”
quantity:-01 no.
0. 22 micron ceramic membrane filter,1200mm length and 2. 5” dia,tff principal -01 no
ss 316 filter housing-length-1200 mm
dia-2. 5”
quantity- 01 no.

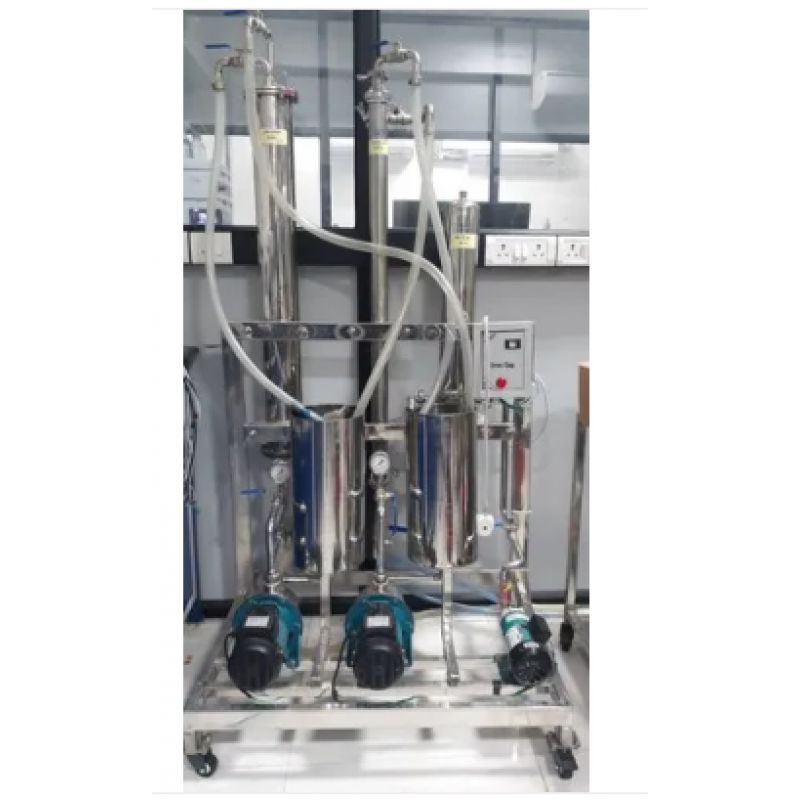

skid mounting: system is integrated together skid mounted plateform with wheels and fitted
with ss tc clamps/nozzles,pressure gauge of 1-7 bars, silicone tubing, diaphragm valves,
ptfe/ss based pumps of ¼ and ½ hp capacities required for installation.
power supply: 230v+10% ,50 hz, ac.
optional accessories:
feed and product storage tanks one no. Each.
tanks capacity:-100 liters, moc: - ss316l with attached ss legs and ss lid complete.
