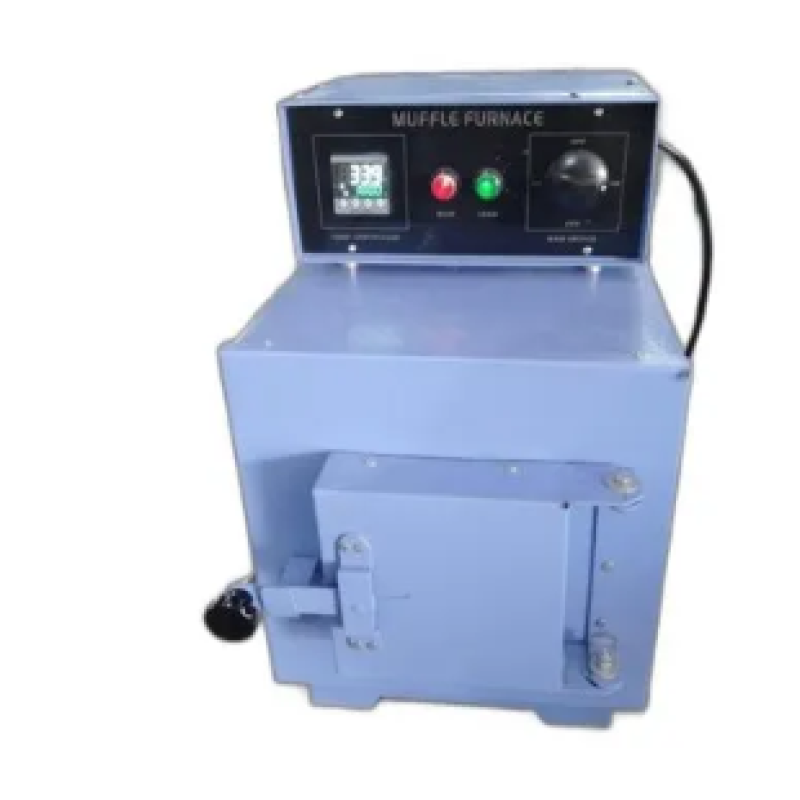

Conxport Muffle Furnace
Product Details:

Power Source	Electric
Voltage	220 V
Automation Grade	Automatic
Melting Material	Mild Steel
Material Loading Capacity (T)	2 Ton
Phase	Single Phase
Working Temperature	Upto 1350 Deg C
Frequency	50 Hz

The unit is specially designed to meet the requirement of High Temperature 1400ºC, the casing is made of M.S. reinforced with iron angles duly painted, Chamber made of Ceramic Zirconium Board and elements are placed Horizontally in the chamber. Heating is done by imported Silicon Carbide Rods duly controlled by accurate step down Transformers (Air cooled), it saves energy upto 30% with easily replaceable Carbide Rods. These Furnaces have outstanding Temperature reliability and has large surface radiation ratio to enhance thermal efficiency and power consumption. Control panel is fitted with Digital Temperature Indicator cum Controller upto 1400ºC Control panel is provided separately having Ammeter Volts Meter and Digital Controller, etc.
