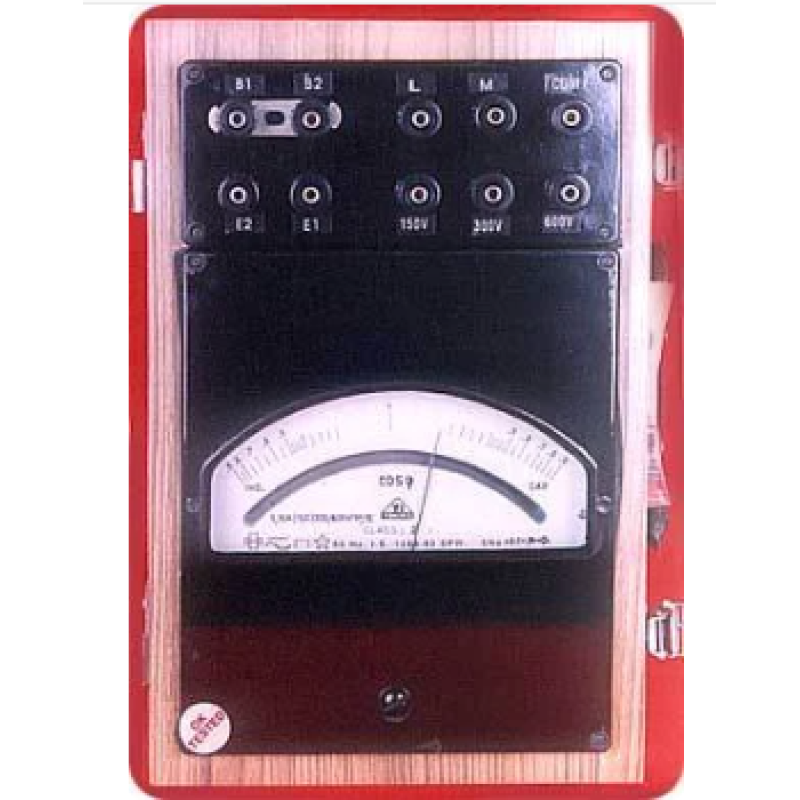

Analog Panel Meters
Movement Type:
- AC Moving Iron type for SO65
- DC Moving Coil type for MO65, MO80, MO100, MO110
- AC Moving coil type with Rectifier Circuit in all above models
Accuracy:
- ±1% of Full Scale for MO110
- ±1.5% of Full Scale for MO100, MO80
- ±2.5% of Full Scale for SO65 & MO65
- Standards: IS-1248
- Size: Dimensional details below.
Application:
- Mostly used in railways
- Agricultural panels
- Marine
- Motor monitoring
Technical Specification:
Type A B C D Panel Cut Scale Length MO65/SO65 45 39 82 65 65 50 MO80 64 55 98 80 80 -
MO100/SO100 70 60 125 104 104 92 MO100/SO100 70 60 135 112.5 112.5 -
Type | A | B | C | D | Panel Cut | Scale Length |
MO65/SO65 | 45 | 39 | 82 | 65 | 65 | 50 |
MO80 | 64 | 55 | 98 | 80 | 80 | - |
MO100/SO100 | 70 | 60 | 125 | 104 | 104 | 92 |
MO100/SO100 | 70 | 60 | 135 | 112.5 | 112.5 | - |
Additional Information:
- Item Code: AV-METERS
