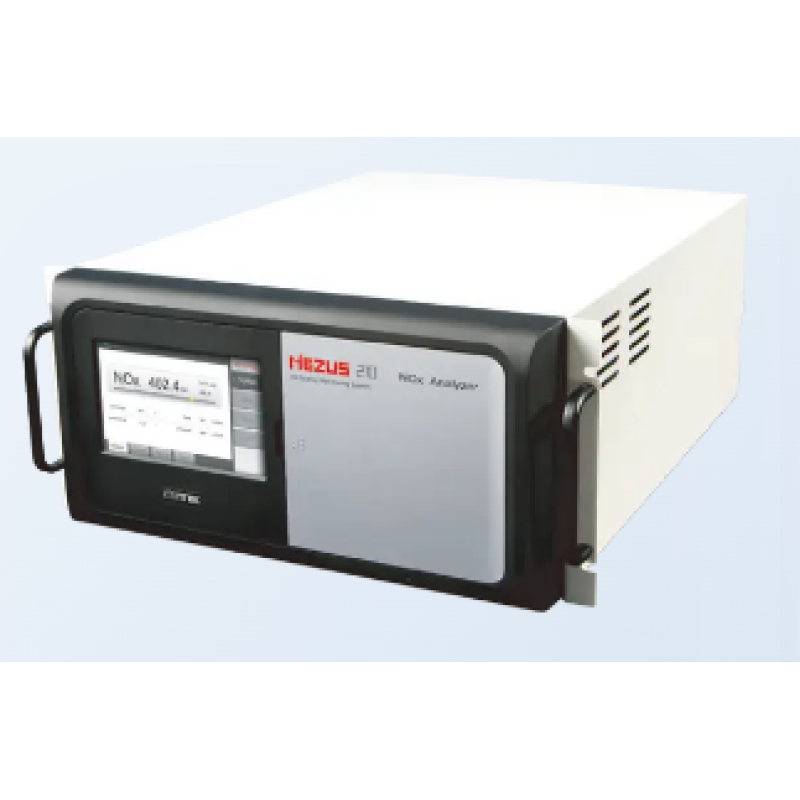

Ambient NOx Gas Analyzer (CAAQMS)

MEZUS 210 NOx Analyzer is the analyzer that measures the minimum amount of NOx(NO, NO2) in the air at the same time using Chemiluminescence.

03 Generator used for MEZUS 210 is designed for strong durability with no failure for a long time and the NO2 —NO Converter for measurement of NO2 is equipped with highly efficient cartridge material which improves the change rate near 100%. All temperature adjustment systems such as response cells, Converter, PMT, TEMP, etc are designed to be entered in the self software which is easy to use.

All gas analyzers of the MEZUS series were equipped with screen interface design using TFT—LCD & Touch screen so that the user can operate the analyzer and maximize the visual image, and MCU applied to the analyzer is ARM11 32bit processor and operates based on Linux Kernel 2.6 which maximizes the system stability due to multiprocessing.

In addition, the analyzer is equipped with an automatic zero correction system (Auto Zero) for smooth measurement and various interfaces (Ethernet, RS232, RS485, USB, DIO, Analog out) so that users can use it more conveniently and usefully.



FEATURES :

• Ranges 0-0.1 / 0.5 / 1 ppm, user selectable. 7inch TFT LCD & touch screen interface.
• Ethernet, RS-232, RS-485 & USB ports.
• USB interface utilizes for System Program Update.
• Temperature & pressure compensation
• Internal zero(optional)Stored data can be retrieved RS-232, USB Inter, face and TCP/IP network
• Inbuilt Data Logger Utilizes NAND-Flash to Store up1 year
