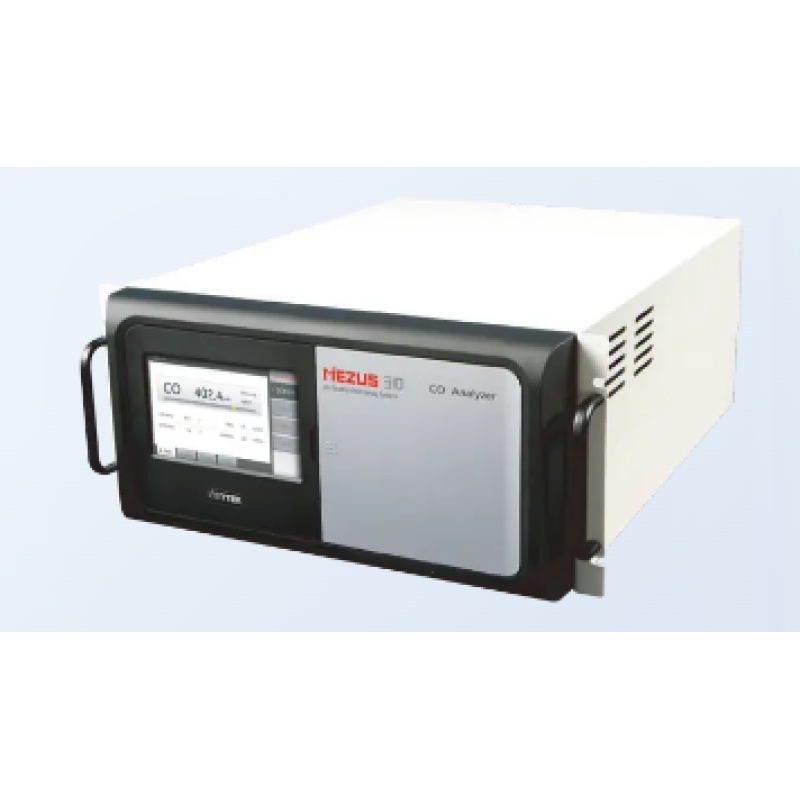

Ambient CO Gas Analyzer (CAAQMS)

MEZUS 310 CO Analyzer is the analyzer that measures the minimum amount of CO in air correctly through the optical curved mirror which has a long light path and durability, using the Non—dispersive Infrared Analysis Method (NDIR GFC). MEZUS 310 is equipped with a specially designed GFC wheel with no leak for a long time and he stable infrared lamp (IR Source).

All gas analyzers of MEZUSthe series were equipped with screen interface design using TFT—LCD & Touch screen so that user can operate the analyzer and maximize the visual image, and MCU applied to the analyzer is ARM 11 32bit processor and operates based on Linux Kernel 2.6 which maximizes the system stability due to mutiprocessing.

In addition, the analyzer is equipped with an automatic zero correction system (Auto Zero) for smooth measurement and various interfaces (Ethernet, RS232, R5485, USB, DIO, Analog out) so that users can use it more conveniently and usefully.

FEATURES :

• Ranges 0-50 / 100 ppm, user selectable.
• 7inch TFT LCD & touch screen interface.
• Ethernet, RS-232, RS-485 & USB ports.
• USB interface utilizes for System Program Update.
• Temperature & pressure compensation
• Internal zero(optional)
• Stored data can be retrieved RS-232, USB Interface and TCP/IP network
• In built Data Logger Utilizes NAND-Flash to Store up to 1year
