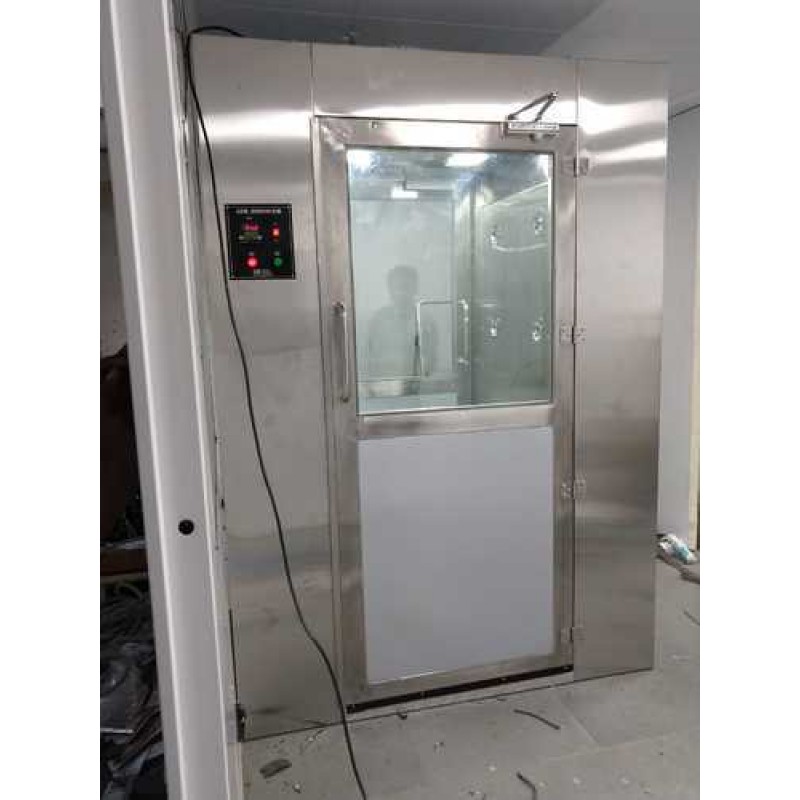

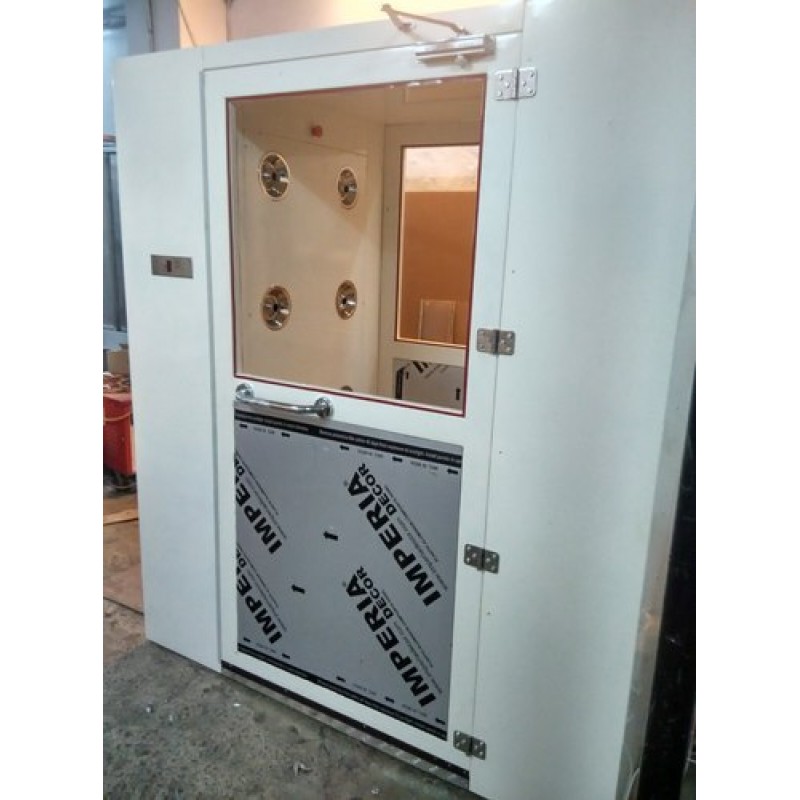

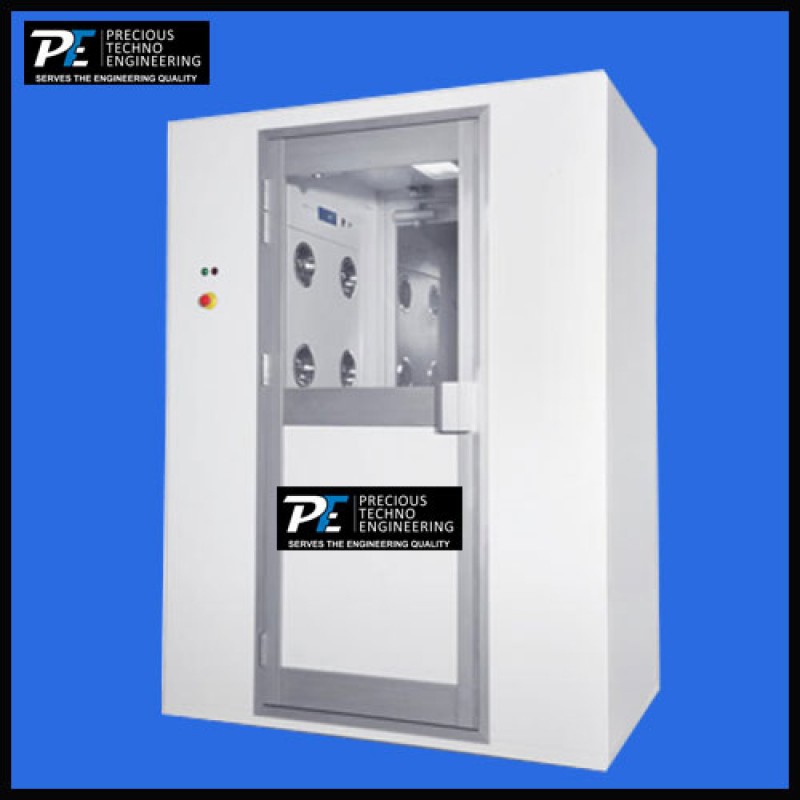

Air Shower

Product Details :

Air Shower features the use of mild steel powder coated in stainless steel 304-grade finish. Work in the form of self-contained modular system, the shower is designed for delivering a spray of moving air from nozzles. These are easy and convenient in transportation and supports installation virtually at any site. Further, the presence of absolute filter-fan module also offers positive pressurization as well as filtration support down to 99.97% efficiency on 0.3 microns.

Features :

• Clean air present inside the shower supports a high degree of sterility as well as clean air conditions
• System supplied with optionally aluminum grated floor placed around 6 inches above the datum level
• Featuring duct air chassis installed within walls of units
• The system provided with two aluminum framed glass/acrylic door support with automatic locking device Both doors in an automatically locked position while the system is in operation
• Provision of unlocking of doors in event of power failure or emergencies
• Pre-filter support that provides for statically/dynamically balanced air and throwing it through HEPA filter into chamber
• Statically & Dynamically balanced Motor-blowers with suspension arrangement to reduce noise level for suction and booster
• Differential Pressure Gauge: 1 No.
• ON/OFF Switches
• DOP Test Port
• 5/15 Amp Switch Socket for external equipment
• Control Systems – to ensure that both the doors cannot open at the same time & to ensure that both the doors will be locked during the time air flow is on.
• Timer for setting Air Shower operation time (settable for 30 seconds to 5 minutes)
• Emergency STOP
• Straight Entry – Straight Exit / 90o Door Opening
• Automatic as well as Manual Mode

Two Stage filtration :

• EU6 - Prefilter (95% down to 5 microns) for return air & fresh air intake
• EU14 - HEPA Filter (99.999% down to 0.3 microns) at the supply position
• SS 304 doors with double walled flush glass view panels & door closer
