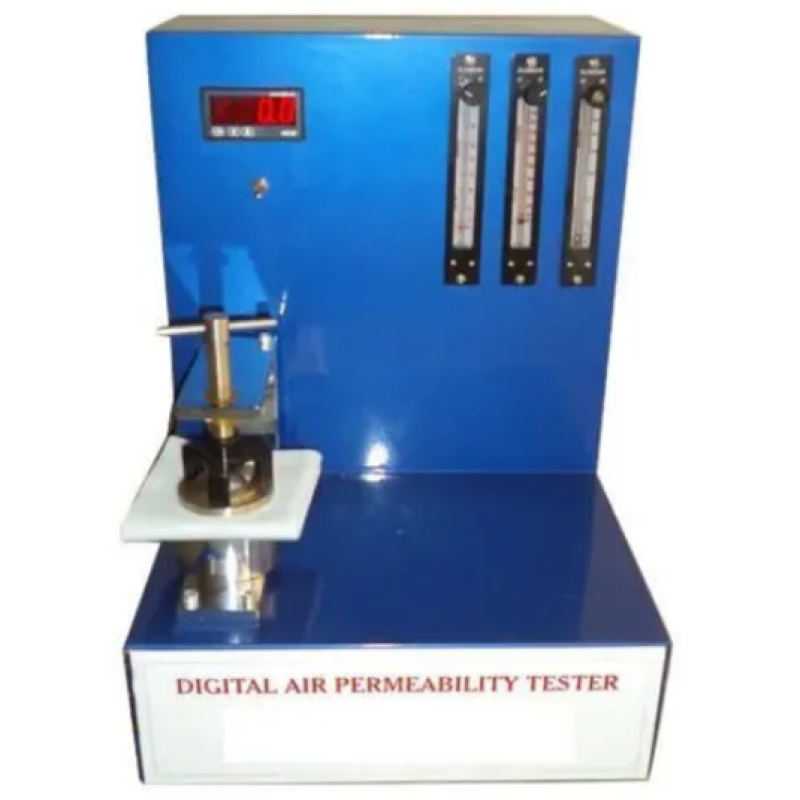

Air Permability Tester

Brand	Sisco India
Material	Mild Steel
Color	Blue
Display	Digital
Rota Meter	Up to 60 LPH at NTP
Voltage	220 V
Display Type	Digital
Country of Origin	Made in India
Test Area	Up to 10 cm2
Vacuum Gauge	24 mm x 0.1 mm of water column

The Air Permeability Tester for textiles consists of an arrangement for holding the test specimens between two flat faces so as to expose a known area to the flow of air through it, a vacuum system to draw air through the exposed area of the test specimens. There is an arrangement to measure the volume of air flowing through the test specimen, and arrangement to measure the pressure drop between the faces of the test specimen.

Technical Data:

• Test Area : 4 cm2 and 10 cm2
• Rota meter : 6.0 –60 LPH at NTP
• (Accuracy 3% of FSR) 90 –900 LPH at NTP 300 –3000 LPH at NTP
• Vacuum gauge : 0 to 24 mm X 0.1 mm of water column.
• (Inclined tube type for analogue model)
• (Digital with vacuum sensor type for digital model)
• (Other power options are also available on request)

Additional Information:

• Delivery Time: 2 To 3 Weeks
