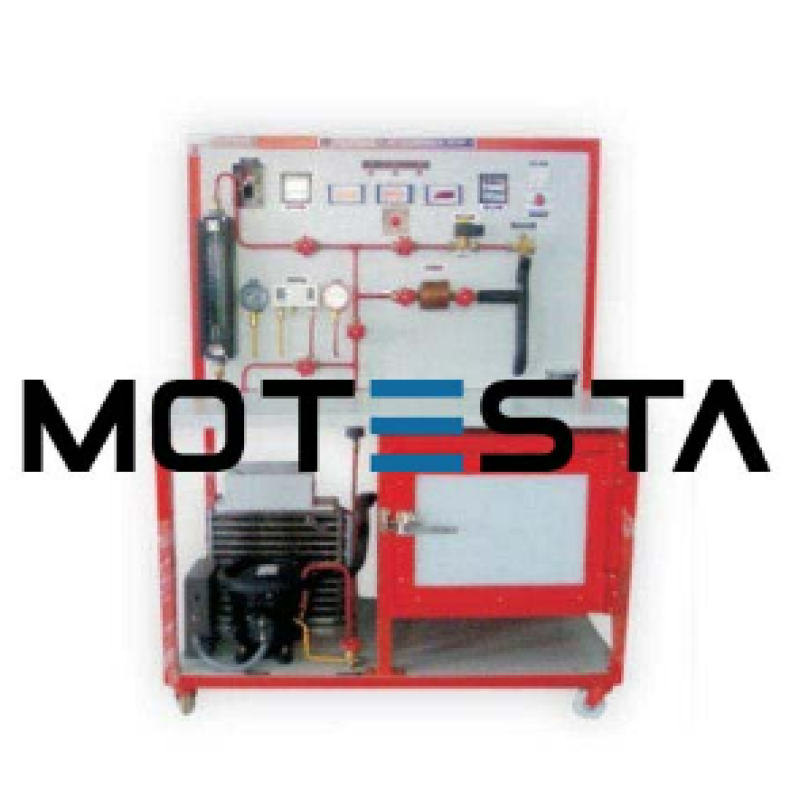

Air Conditioning Test Rig

This Laboratory scale working model housed on a M.S. Square tube frame further mounted on a wheels (CI) with instrumentation panel is used i) To study the Vapour Compression Cycle ii) To calculate co-efficient to performance (COP) iii) To evaluate tonnage capacity iv) To study humidification and dehumidification.

01. Hermitically Sealed Compressor
Capacity	: 1.0 Ton
02. Air Cooled Condenser
Capacity	: 1.0 Ton
03. Condenser Cooling Fan
Capacity	: 1/10 HP
04. Rota Meter (Refrigerant R 22) 1 No
05. Hand Shut Off Valves
Size	: 3/8 & 1/4"
06. Filter Drier	: DM 50 (3/8 )" Type
07. Energy Meters	: 2 NO.
08. Thermostat	: 1 NO
09. Pressure/ Compound Gauges
1 Nos Each. Range	: 0 to 300 psi/-30” Hg to + 150 Psi
10. Measuring Instruments
a) Digital Temperature Indicator	: Ambient to199.9deg. c.
11. Finned Heater	: 1 NO.
12. Electronic Dimmer	: 1 NO
13. Hp/Lpcutout	: 1 NO.
14. Air Conditioning Duct	: 1 SET
15. Steam Generator	: 1 SET
16. Anemometer	: 1 NO.
Optional	: At Extra Cost Line Voltage Corrector
Capacity	: 4KVA
Output	: 230V+/- 10%
