Agitated Thin Film Evaporators

Product Details:

Automation Grade	Semi-Automatic
Capacity	As per client requirement
Material	SS304 / SS316
Usage/Application	Solvent Recovery or mass concentration
Frequency	Once
Automatic Grade	Semi-Automatic, Automatic
Design	Standard, Customized
Max Temperature	0 to 65 deg c
Brand	ARKCHEM
Voltage	440
Client	Pharmaceutical / Herbal Extraction / Chemical Process Industries
Phase	Three
Type	Direct Driven

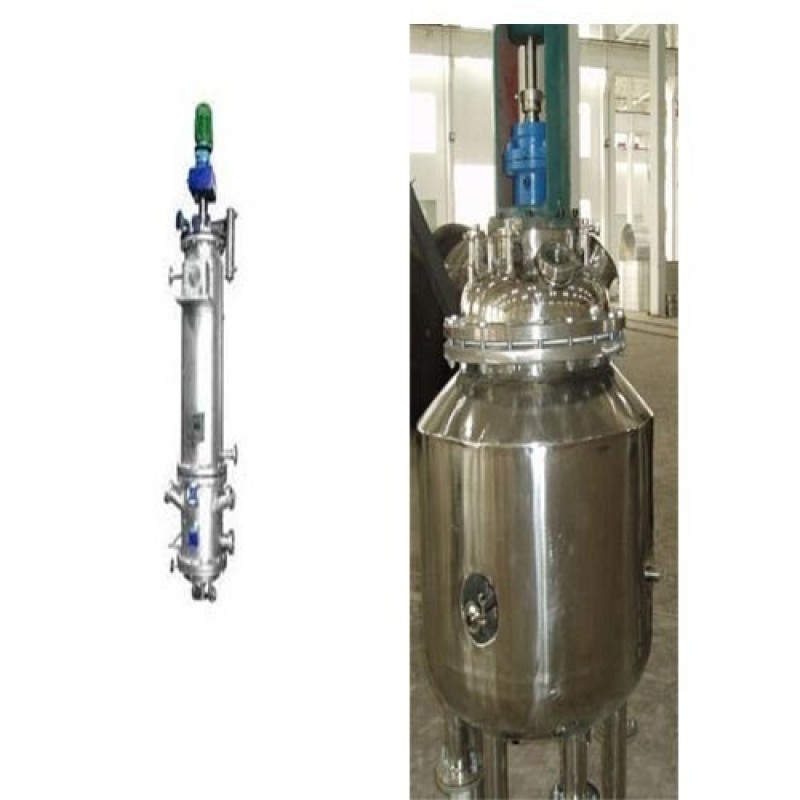

.Agitated Thin Film Evaporator (ATFE) also known as Thin Film Evaporator (TFE) or Wiped Film Evaporator (WFE) consists of jacketed shell precision machined from inside & a rotor having blades that maintain a close clearance from the shell.

The feed distributor at the entry point distributes the liquid in a thin film on the heated wall. The high speed rotor further spreads & intensely agitates the film as it flows down. The generated vapors flow counter currently & get cleaned by an integrally mounted entrainment separator.

Additional Information:

• Item Code: GEP
• Production Capacity: 1kg to as per requirement

• Delivery Time: 4 Weeks
• Packaging Details: Electrical motor with stuffing box will be supported on saddle and subsequently shell and bottom part.
